Check Bus 2 Line [11/2022 - ]: Procedure
- CHECK FOR OPEN IN CAN MAIN BUS LINES
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Measure the resistance according to the value(s) in the table below.

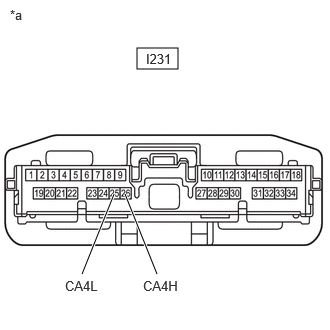

*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I231-26 (CA4H) - I231-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω Result
Proceed to OK NG
Result:
NG
See step 35
Result:
OK
See step 2
- CHECK FOR SHORT IN CAN BUS LINES
- Measure the resistance according to the value(s) in the table below.

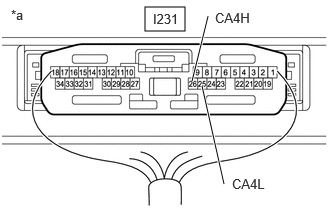

*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I231-26 (CA4H) - I231-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher Result
Proceed to OK NG
Result:
NG
See step 25
Result:
OK
See step 3
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.

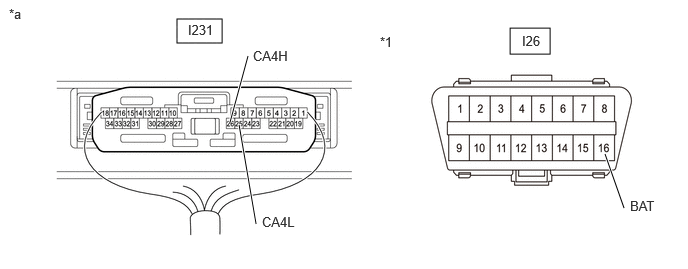

*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance
Tester Connection Condition Specified Condition I231-26 (CA4H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I231-25 (CA4L) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 15
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.

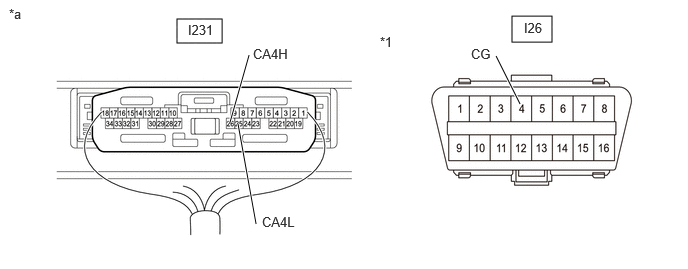

*1 DLC3 - - *a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))- - Standard Resistance
Tester Connection Condition Specified Condition I231-26 (CA4H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I231-25 (CA4L) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 5
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the battery ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher O211-8 (CA2L) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
See step 7
Result:
OK
See step 6
- Check that the service plug grip is not installed.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O211-20 (C2HB) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher O211-19 (C2LB) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 8
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher O211-8 (CA2L) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
- Disconnect the No. 13 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Battery ECU Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I263-14 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
Result:
OK
See step 9
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Motor Control Inverter Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I263-12 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
See step 12
Result:
OK
See step 10
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-13 (CANL) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I263-13 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 11
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Disconnect the I249 hybrid vehicle control ECU connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I263-13 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU
Refer to REMOVAL [11/2022 - 12/2024] , or refer to REMOVAL [12/2024 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the hybrid motor control inverter assembly connector.
- Measure the resistance according to the value(s) in the table below.

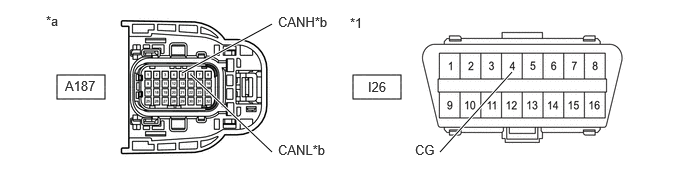

*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A187-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher A187-6 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
Result:
OK
See step 13
- Check that the service plug grip is not installed.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Measure the resistance according to the value(s) in the table below.

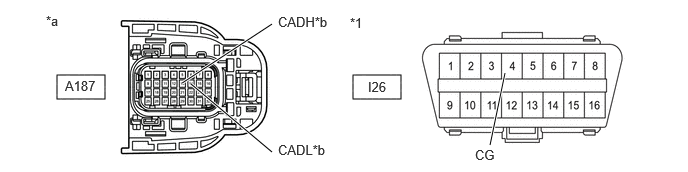

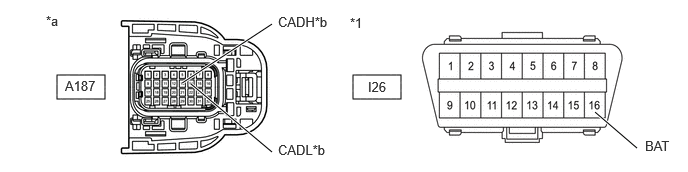

*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher A187-14 (CADL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE MG ECU (REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
Result:
NG
See step 14
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)

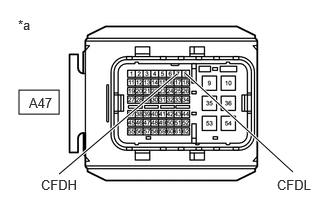

- Disconnect the A47 ECM connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher A187-14 (CADL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the battery ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher O211-8 (CA2L) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 17
Result:
OK
See step 16
- Check that the service plug grip is not installed.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O211-20 (C2HB) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher O211-19 (C2LB) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 18
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher O211-8 (CA2L) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
- Disconnect the No. 13 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Battery ECU Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I263-14 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
Result:
OK
See step 19
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Motor Control Inverter Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I263-12 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 22
Result:
OK
See step 20
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I263-13 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 21
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Disconnect the I249 hybrid vehicle control ECU connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I263-13 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU
Refer to REMOVAL [11/2022 - 12/2024] , or refer to REMOVAL [12/2024 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- CHECK FOR SHORT TO +B IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the hybrid motor control inverter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A187-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher A187-6 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
Result:
OK
See step 23
- Check that the service plug grip is not installed.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher A187-14 (CADL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE MG ECU (REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
Result:
NG
See step 24
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO +B IN CAN BUS LINE (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Disconnect the A47 ECM connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher A187-14 (CADL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the battery ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - O211-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
See step 27
Result:
OK
See step 26
- Check that the service plug grip is not installed.
- CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Battery ECU Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O211-20 (C2HB) - O211-19 (C2LB) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 28
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - O211-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
- Disconnect the No. 13 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Battery ECU Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-3 (CANH) - I263-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
Result:
OK
See step 29
- CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Motor Control Inverter Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-1 (CANH) - I263-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Result
Proceed to OK NG
Result:
NG
See step 32
Result:
OK
See step 30
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-2 (CANH) - I263-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Result
Proceed to OK NG
Result:
OK
REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 31
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- Disconnect the I249 hybrid vehicle control ECU connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Vehicle Control ECU Standard Resistance
Tester Connection Condition Specified Condition I263-2 (CANH) - I263-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU
Refer to REMOVAL [11/2022 - 12/2024] , or refer to REMOVAL [12/2024 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
- CHECK FOR SHORT IN CAN BUS LINES (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the hybrid motor control inverter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A187-5 (CANH) - A187-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
Result:
OK
See step 33
- Check that the service plug grip is not installed.
- CHECK FOR SHORT IN CAN BUS LINES (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - A187-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Result
Proceed to OK NG
Result:
OK
REPLACE MG ECU (REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
Result:
NG
See step 34
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Disconnect the A47 ECM connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - A187-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I231-26 (CA4H) - I231-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 36
- CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Reconnect the I231 central gateway ECU (network gateway ECU) connector.
- Disconnect the battery ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Battery ECU Assembly)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition O211-9 (CA2H) - O211-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 37
- Check that the service plug grip is not installed.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Battery ECU Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition O211-20 (C2HB) - O211-19 (C2LB) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 38
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
- Reconnect the O211 battery ECU assembly connector.
- Disconnect the No. 13 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Battery ECU Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-3 (CANH) - I263-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
Result:
OK
See step 39
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 13 GLOBAL CAN JUNCTION CONNECTOR - HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)*b to Hybrid Motor Control Inverter Assembly Standard Resistance
Tester Connection Condition Specified Condition I263-1 (CANH) - I263-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 13 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 40
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Reconnect the I263 No. 13 global CAN junction connector.
- Disconnect the hybrid motor control inverter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to No. 13 Global CAN Junction Connector Standard Resistance
Tester Connection Condition Specified Condition A187-5 (CANH) - A187-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - NO. 13 GLOBAL CAN JUNCTION CONNECTOR)
Result:
OK
See step 41
- Check that the service plug grip is not installed.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID MOTOR CONTROL INVERTER ASSEMBLY - ECM)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Motor Control Inverter Assembly)*b to ECM Standard Resistance
Tester Connection Condition Specified Condition A187-13 (CADH) - A187-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE MG ECU (REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
Result:
NG
See step 42
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
- Reconnect the A187 hybrid motor control inverter assembly connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A47-7 (CFDH) - A47-8 (CFDL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to ECM)Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - HYBRID MOTOR CONTROL INVERTER ASSEMBLY)
