Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Before the following operations are conducted, take precautions to prevent electric shock by turning the power switch off, wearing insulated gloves, and removing the service plug grip from HV battery.

Fig 1: Wear Insulated Gloves
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Inspecting the high-voltage system
- Disconnecting the low voltage connector of the hybrid motor control inverter assembly
- Disconnecting the low voltage connector of the HV battery
To prevent electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.

Fig 2: Remove The Service Plug
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
After removing the service plug grip from the HV battery, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

Fig 3: Do Not Leave Service Plug Grip Accessible To Other Technicians
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

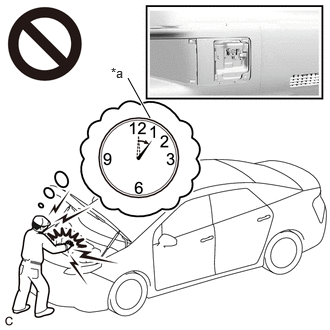

After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the hybrid motor control inverter assembly. The voltage should be 0 V before beginning work.

Refer to PRECAUTION [11/2022 - 12/2024] , or refer to PRECAUTION [12/2024 - ]

HINT:

Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the hybrid motor control inverter assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Without waiting for 10 minutes

NOTE:

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2022 - 11/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - 12/2024] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2024 - ]
Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
When disconnecting and reconnecting the auxiliary battery.
HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2022 - ]
Some parts must be initialized and set when replacing or removing and installing parts.
Refer to WORK PROCEDURE [11/2022 - 11/2023] , or refer to WORK PROCEDURE [11/2023 - 12/2024] , or refer to WORK PROCEDURE [12/2024 - ]
After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.
Refer to DIAGNOSIS SYSTEM [11/2022 - 12/2024] , or refer to DIAGNOSIS SYSTEM [12/2024 - ]
Before replacing the hybrid vehicle control ECU, refer to Registration.
Refer to REGISTRATION [11/2022 - ]

HINT:

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
