Parts Location [11/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

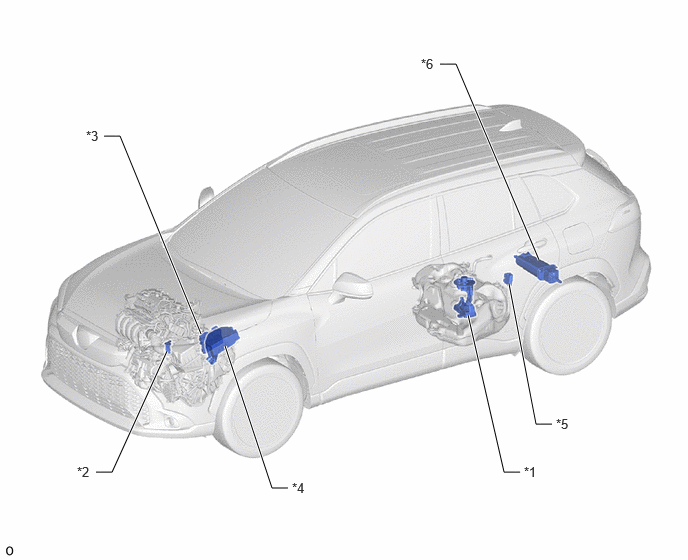

| *1 |
FUEL PUMP (for Low Pressure Side) |
*2 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *3 |
ECM |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK |
| *5 |
FUEL PUMP CONTROL ECU |
*6 |
CANISTER |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

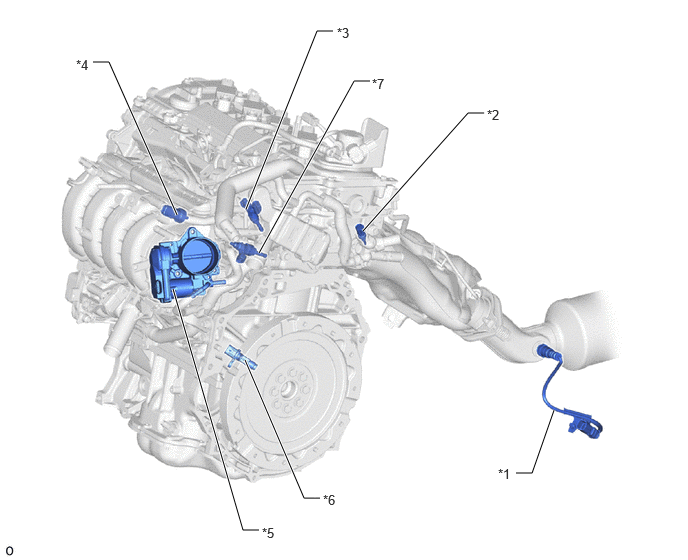

| *1 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
PORT FUEL INJECTOR ASSEMBLY |
*4 |
NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *5 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*6 |
CRANKSHAFT POSITION SENSOR |
| *7 |
DIRECT FUEL INJECTOR ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

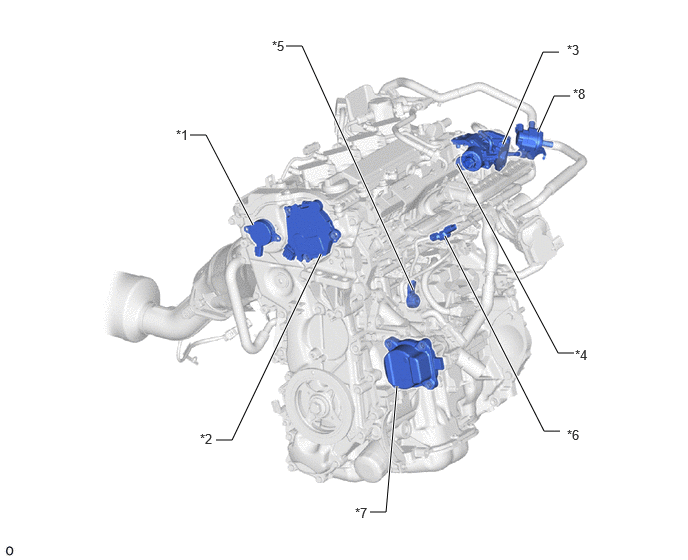

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
E.F.I. VACUUM SENSOR ASSEMBLY |
| *7 |
INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
*8 |
PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY) |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

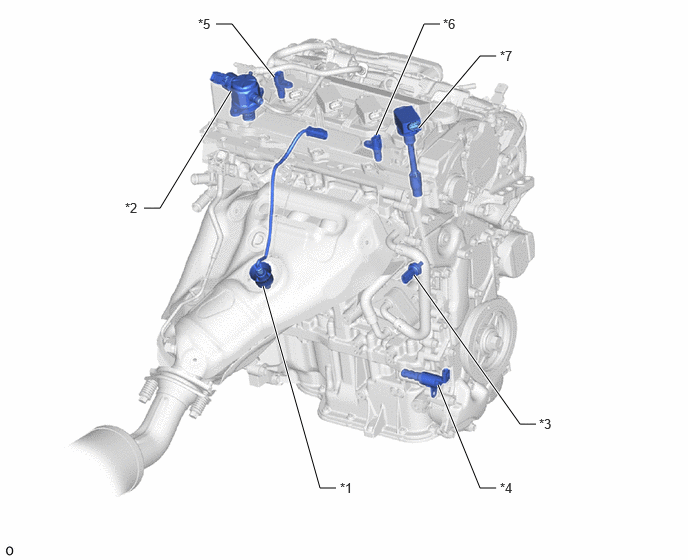

| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
OIL PRESSURE AND TEMPERATURE SENSOR |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

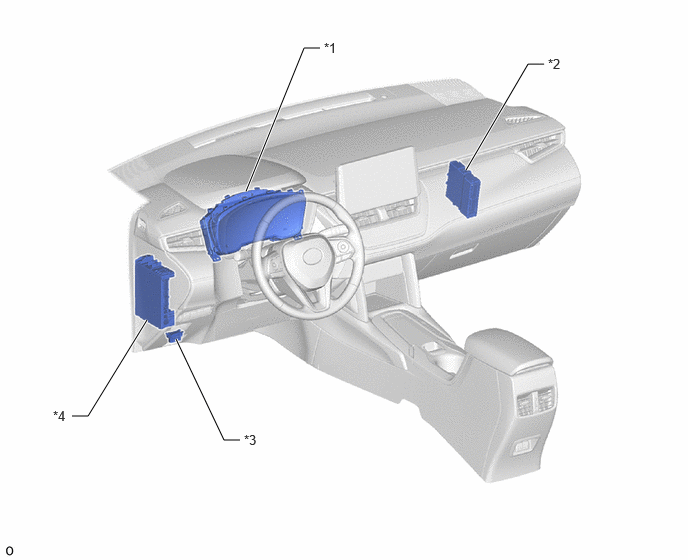

| *1 |
COMBINATION METER ASSEMBLY |
*2 |
HYBRID VEHICLE CONTROL ECU |
| *3 |
DLC3 |
*4 |
POWER DISTRIBUTION BOX ASSEMBLY |
