Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

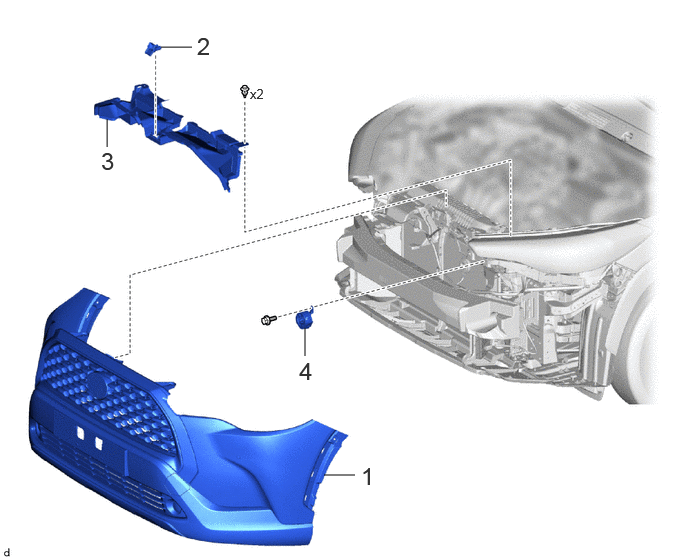

Fig 1: Vehicle Approaching Speaker Removal Components
GTY1121473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 FRONT BUMPER ASSEMBLY - - - -
2 LOWER NO. 2 FRONT BUMPER RETAINER 52527C - - -
3 NO. 1 RADIATOR TO SUPPORT SEAL 16561C - - -
4 VEHICLE APPROACHING SPEAKER ASSEMBLY 86570 - - -
