Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

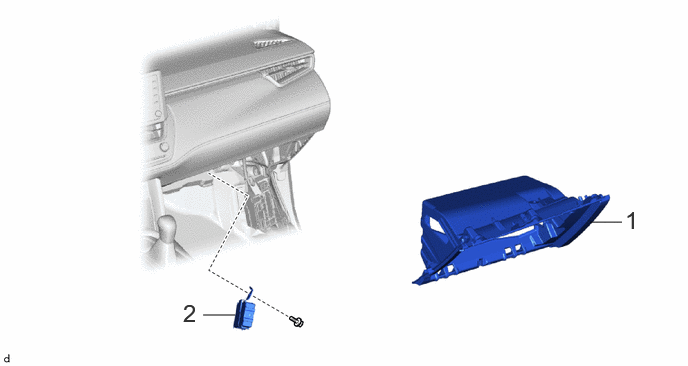

Fig 1: Vehicle Approaching Speaker ECU Removal Components
GTY1118482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL 55433B - - -
2 VEHICLE APPROACHING SPEAKER CONTROLLER 86572 - - -
