Check Bus 6 Line [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

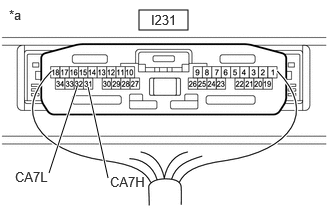

      GTY1109445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-31 (CA7H) - I231-32 (CA7L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1109445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-31 (CA7H) - I231-32 (CA7L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  21

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

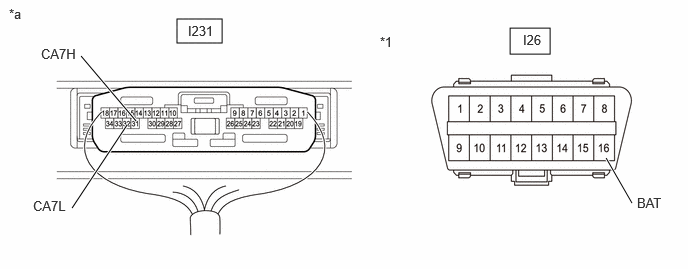

      GTY1113382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected (Central Gateway ECU (Network Gateway ECU)) - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-31 (CA7H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I231-32 (CA7L) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  13

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

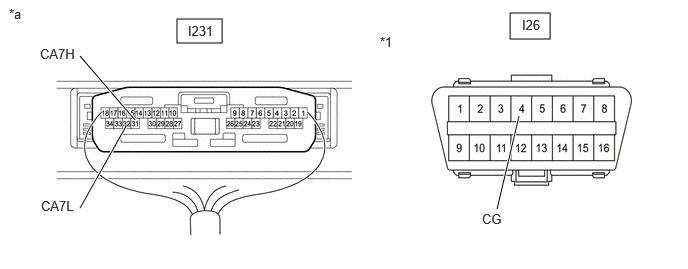

      GTY1113383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected (Central Gateway ECU (Network Gateway ECU)) - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-31 (CA7H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I231-32 (CA7L) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 22 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-19 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-22 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1119198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-21 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-20 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  12

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-19 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Disconnect the I256 vehicle approaching speaker controller connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-22 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O209 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-21 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O227-20 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  13. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 22 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-19 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  14

  14. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-22 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  18

    Result:

    OK

    See step  15

  15. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-21 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  19

    Result:

    OK

    See step  16

  16. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-20 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  20

  17. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-19 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  18. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Disconnect the I256 vehicle approaching speaker controller connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-22 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

  19. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O209 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-21 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  20. CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O227-20 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  21. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 22 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - O227-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  22

  22. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - O227-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  26

    Result:

    OK

    See step  23

  23. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - O227-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  24

  24. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - O227-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  28

  25. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - O227-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  26. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
    1. Disconnect the I256 vehicle approaching speaker controller connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Vehicle Approaching Speaker Controller

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-11 (CANH) - O227-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

  27. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
    1. Disconnect the O209 tire pressure warning ECU and receiver connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1118456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Tire Pressure Warning ECU and Receiver

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-10 (CANH) - O227-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

  28. CHECK FOR SHORT IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - O227-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  29. CHECK FOR OPEN IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 22 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - O227-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  32

    Result:

    OK

    See step  30

  30. CHECK FOR OPEN IN CAN BUS LINES (NO. 22 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 22 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - O227-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 22 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  31

  31. CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-9 (CANH) - I231-10 (CAVH) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      O227-20 (CANL) - I231-11 (CAVL) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

  32. CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O227-8 (CANH) - I231-31 (CA7H) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      O227-19 (CANL) - I231-32 (CA7L) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 22 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
