Check Bus 5 Line [12/2024 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

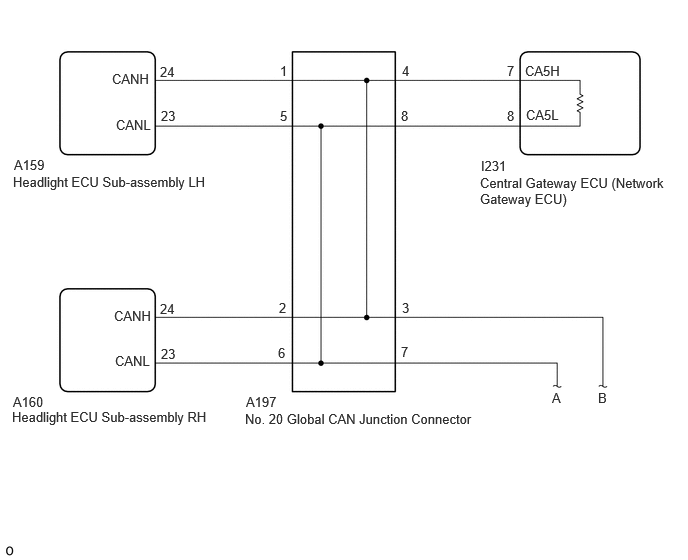

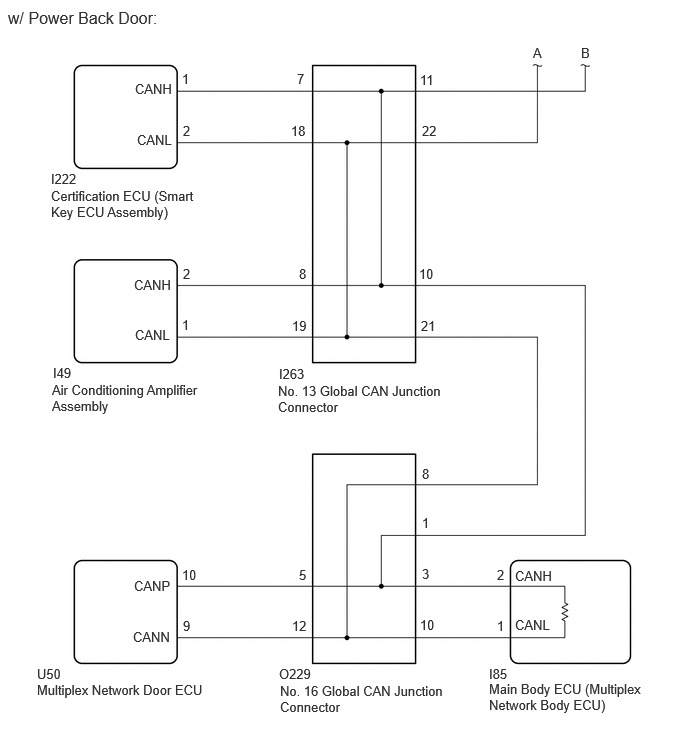

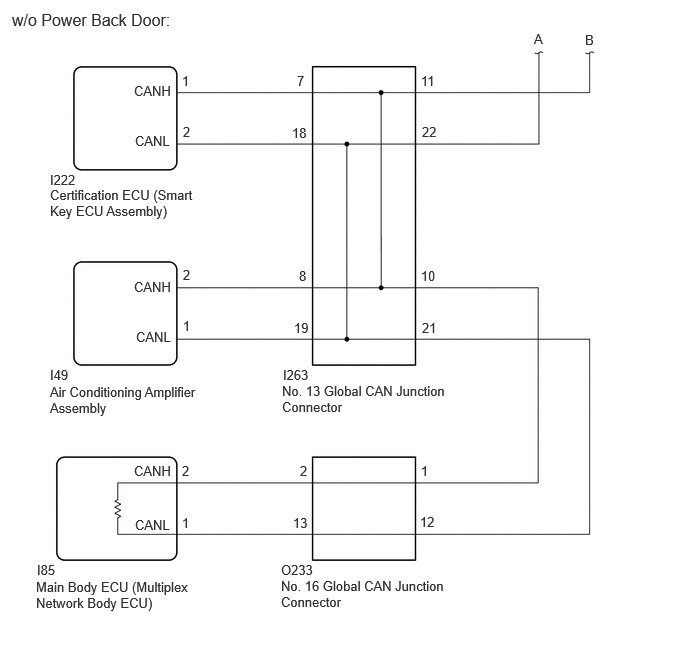

  1. w/ AFS
    GTY1115063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1252427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1118480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

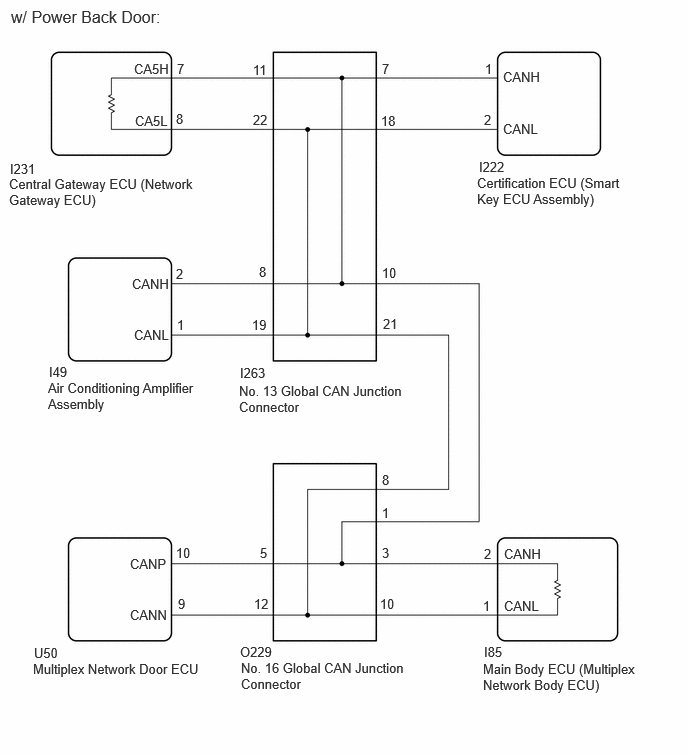

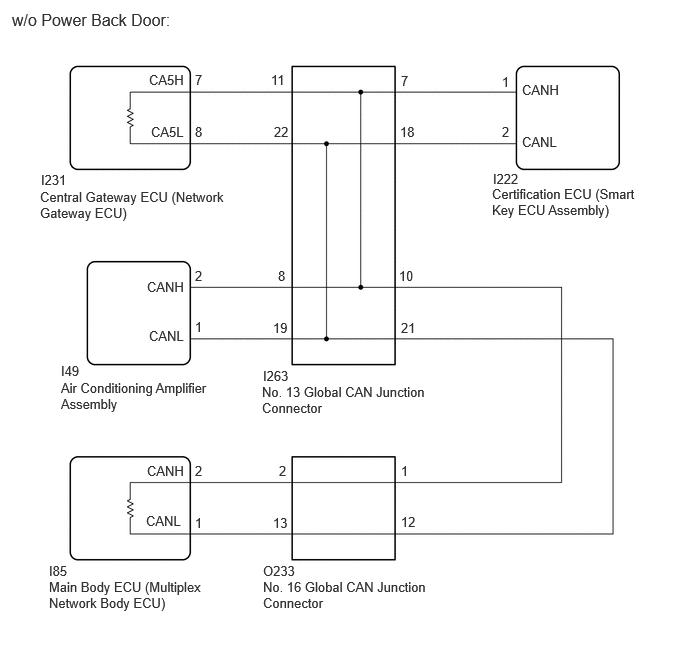

  2. w/o AFS
    GTY1251077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1115571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
