Parts Location [11/2023 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

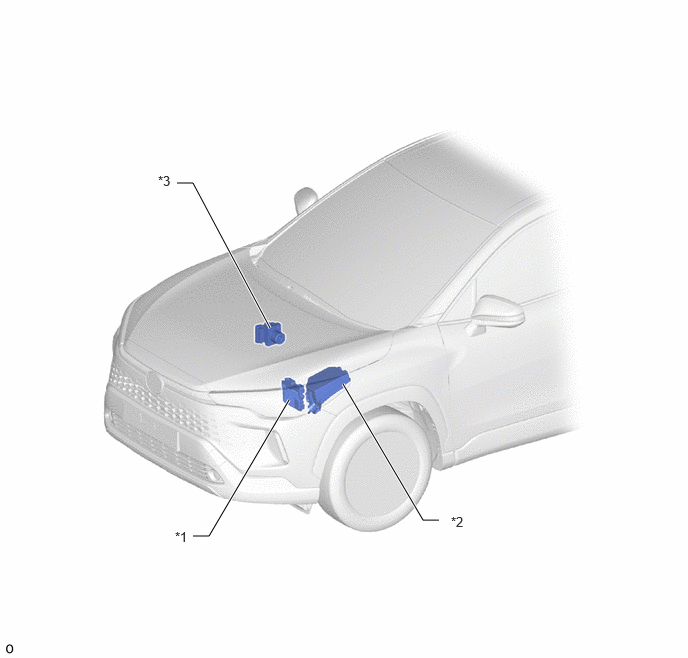

Fig 1: Continuously Variable Transaxle System Replacement Components (1 Of 4) [11/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ECM	*2	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	-	-

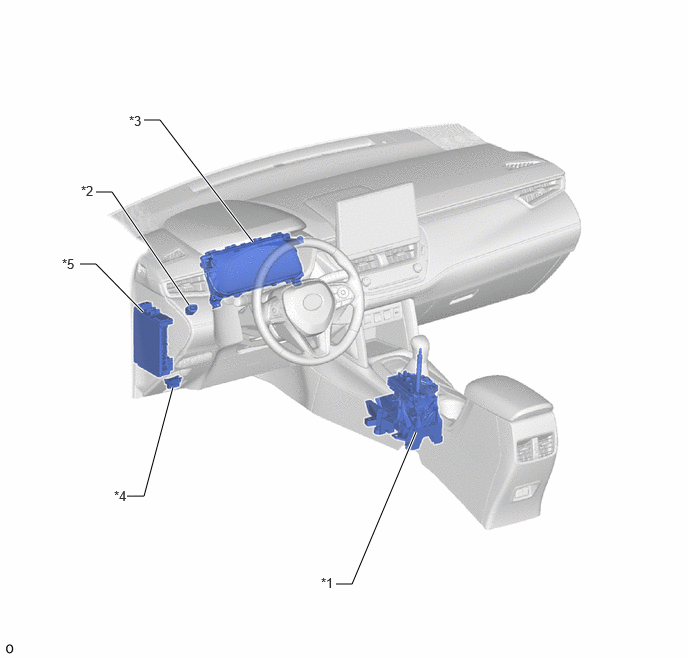

Fig 1: Continuously Variable Transaxle System Replacement Components (2 Of 4) [11/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH - SHIFT POSITION INDICATOR	*2	STOP LIGHT SWITCH ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	DLC3
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	-	-

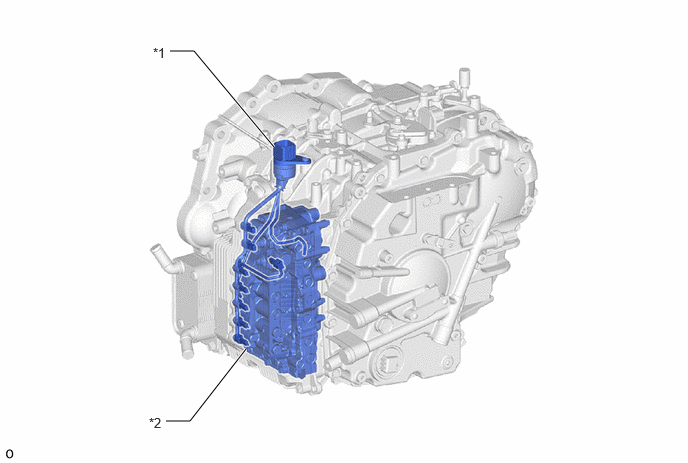

Fig 1: Continuously Variable Transaxle System Replacement Components (3 Of 4) [11/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TRANSMISSION WIRE
- CVT FLUID TEMPERATURE SENSOR

TRANSMISSION VALVE BODY ASSEMBLY
- SHIFT SOLENOID VALVE SC1
- SHIFT SOLENOID VALVE SC2
- SHIFT SOLENOID VALVE SC3
- SHIFT SOLENOID VALVE SL1
- SHIFT SOLENOID VALVE SL2
- SHIFT SOLENOID VALVE SLU
- SHIFT SOLENOID VALVE SLP
- SHIFT SOLENOID VALVE SLS

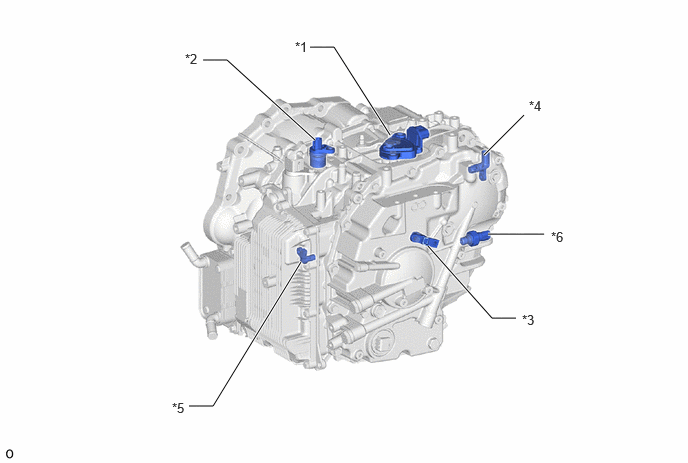

Fig 1: Continuously Variable Transaxle System Replacement Components (4 Of 4) [11/2023 - ]

*1	SHIFT LEVER POSITION SENSOR	*2	SHIFT STROKE SENSOR
*3	TRANSMISSION REVOLUTION SENSOR (NT)	*4	TRANSMISSION REVOLUTION SENSOR (NSS)
*5	TRANSMISSION REVOLUTION SENSOR (NC1)	*6	OIL PRESSURE SENSOR
