Removal [09/2021 - 11/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [09/2021 - 11/2022]

  3. REMOVE AIR CLEANER INLET NO. 1

    Refer to PROCEDURE - Step 6

  4. REMOVE ENGINE UNDER COVER ASSEMBLY NO. 1

    Refer to PROCEDURE - Step 8

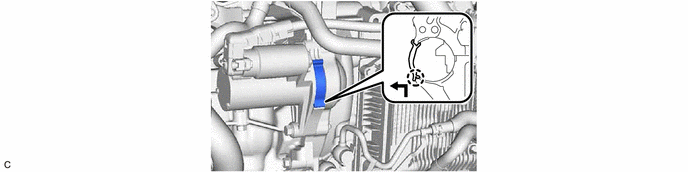

  5. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. GTY1030409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

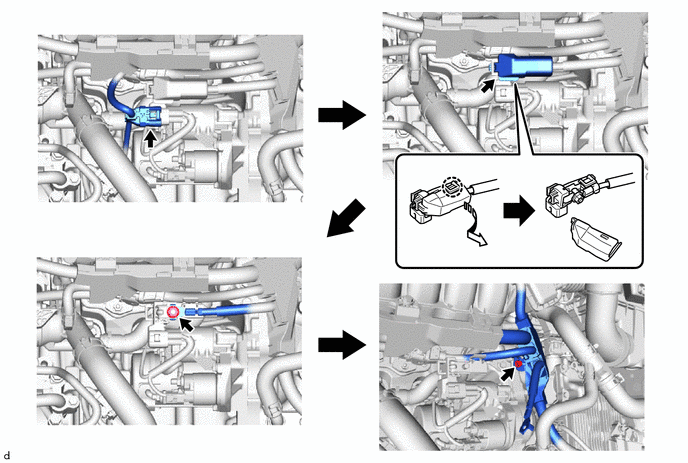

  6. DISCONNECT ENGINE WIRE
    1. GTY1029388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

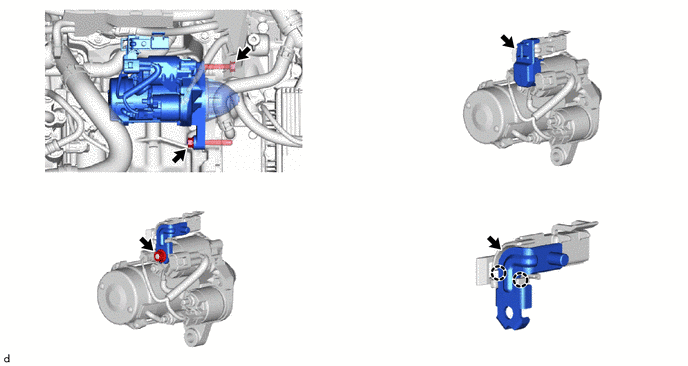

  7. REMOVE STARTER ASSEMBLY
    1. GTY1029389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
