Disassembly [09/2021 - 11/2022]: Procedure

  1. SEPARATE REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP
    1. GTY1033906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using needle-nose pliers, disengage the claws and separate the rear No. 2 drive shaft inboard joint boot clamp as shown in the illustration.
  2. SEPARATE REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP
    1. Perform the same procedure as for the rear No. 2 drive shaft inboard joint boot clamp.
  3. SEPARATE REAR DRIVE SHAFT INBOARD JOINT BOOT
    1. GTY975260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

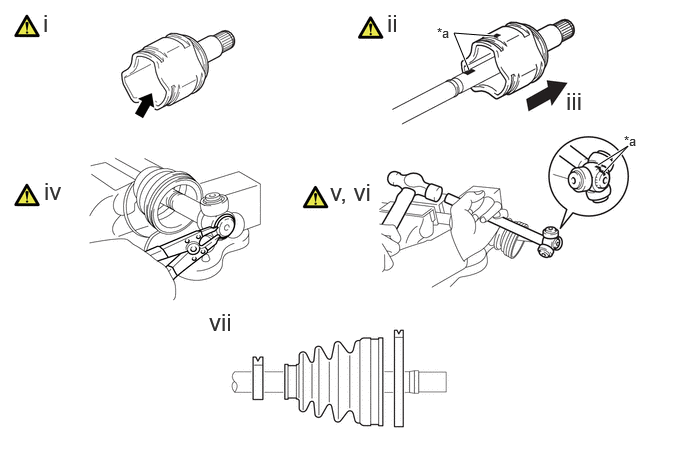

  4. REMOVE REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY
    1. GTY1034614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Remove any old grease from the rear drive shaft inboard joint assembly.
      2. Put matchmarks on the rear drive shaft inboard joint assembly and rear drive outboard joint shaft assembly.
        NOTE:

        Do not use a punch to make the matchmarks.

      3. Remove the rear drive shaft inboard joint assembly from the rear drive outboard joint shaft assembly.
      4. Using a snap ring expander, remove the rear drive shaft snap ring from the rear drive outboard joint shaft assembly.
      5. Put matchmarks on the rear drive outboard joint shaft assembly and tripod joint.
        NOTE:

        Do not use a punch to make the matchmarks.

      6. Using a brass bar and a hammer, tap out the tripod joint from the rear drive outboard joint shaft assembly.
        NOTE:
        • Do not tap the rollers.
        • Do not drop the tripod joint.
      7. Remove the rear No. 2 drive shaft inboard joint boot clamp, rear drive shaft inboard joint boot and rear drive shaft inboard joint boot clamp.
  5. SEPARATE REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP
    1. GTY1034144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, separate the rear No. 2 drive shaft outboard joint boot clamp as shown in the illustration.
  6. SEPARATE REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP
    1. GTY1034962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using pliers, separate the rear drive shaft outboard joint boot clamp as shown in the illustration.
  7. REMOVE REAR DRIVE SHAFT OUTBOARD JOINT BOOT
    1. GTY1033862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear drive shaft outboard joint boot clamp, rear drive shaft outboard joint boot and rear No. 2 drive shaft outboard joint boot clamp from the rear drive outboard joint shaft assembly.
      2. Remove the old grease from the rear drive outboard joint shaft assembly.
  8. REMOVE REAR DRIVE SHAFT DUST COVER
    1. GTY1034003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a press, remove the rear drive shaft dust cover from the rear drive shaft inboard joint assembly.
        • SST: 09950-00020
        NOTE:
        • Do not overtighten SST.
        • Do not drop the rear drive shaft inboard joint assembly.
