Caution / Notice / Hint

COMPONENTS (REMOVAL)

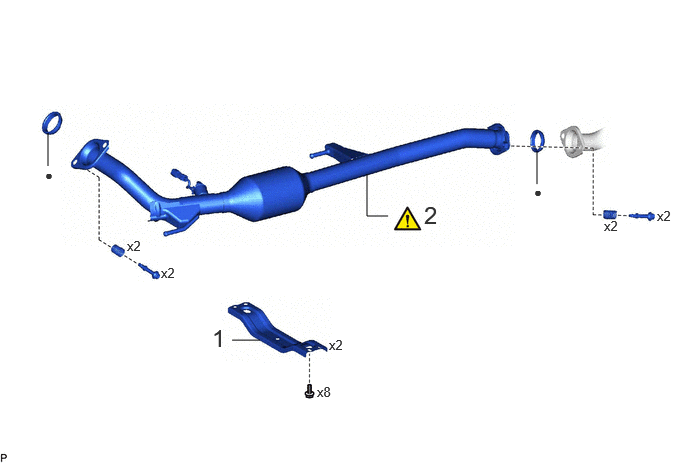

Fig 1: Propeller Shaft Assembly Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT FLOOR CENTER BRACE	57533B	-	-	-
2	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 2	-	-

•

Non-reusable part

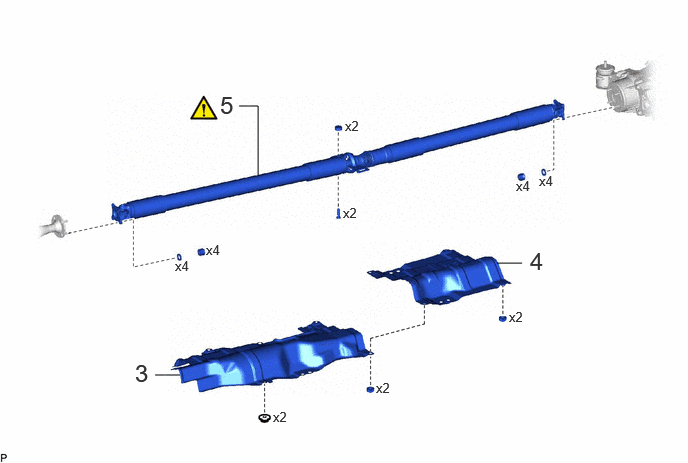

Fig 2: Propeller Shaft Assembly Removal Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3	FRONT LOWER NO. 1 FLOOR HEAT INSULATOR	58152A	-	-	-
4	FRONT NO. 2 FLOOR HEAT INSULATOR	58153	-	-	-
5	PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY	37100	See step 5	-	-

WARNING:

When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.

Touching high-temperature areas such as the engine and exhaust pipe could result in burns.
