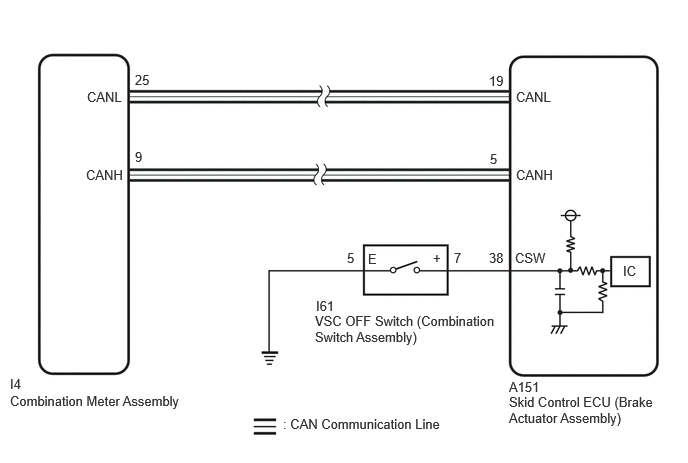

VSC OFF Switch Circuit [09/2021 - 11/2022]: Wiring Diagram

GTY1035663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
