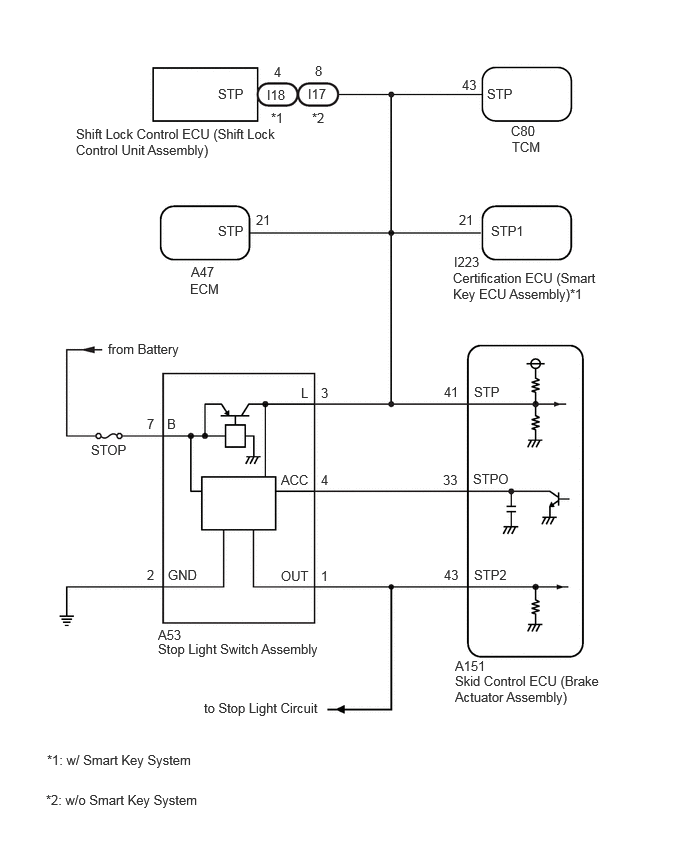

DTC P0571-11: Brake Switch "A" Circuit Short to Ground [09/2021 - 11/2022]: Wiring Diagram

GTY1034936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
