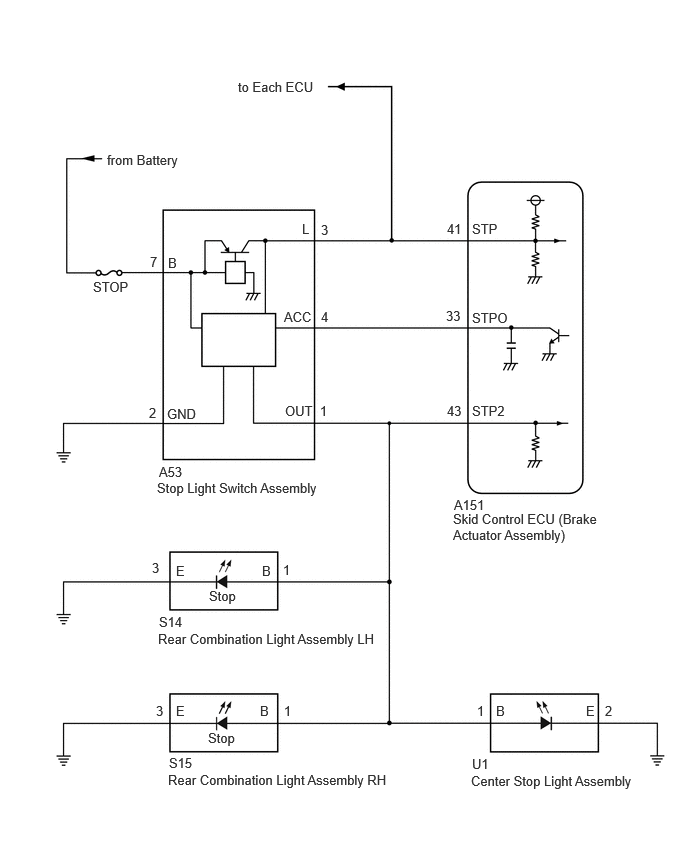

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [09/2021 - 11/2022]: Wiring Diagram

GTY1033321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
