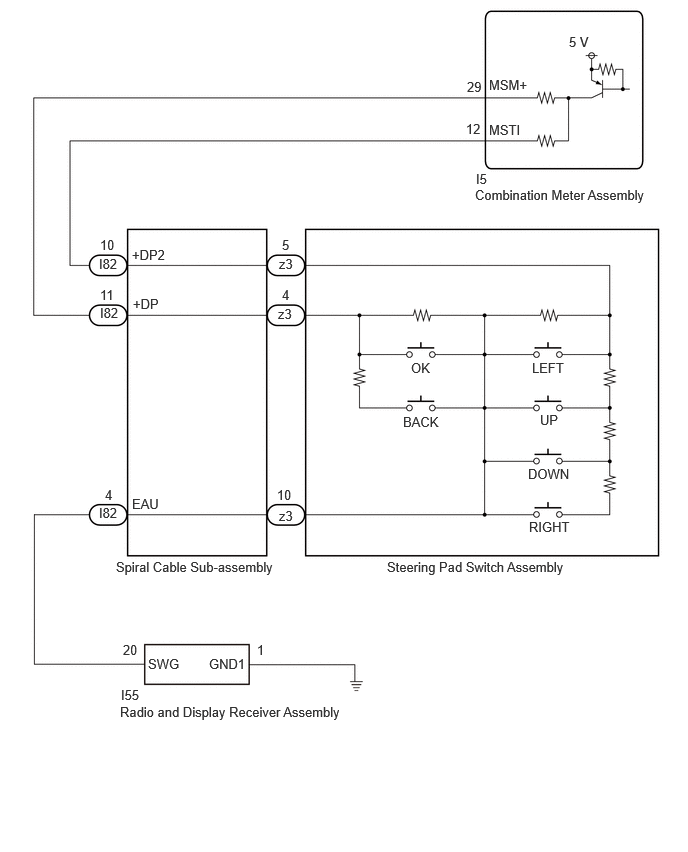

Steering Pad Switch Circuit [11/2022 - ]: Wiring Diagram

GTY1121943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
