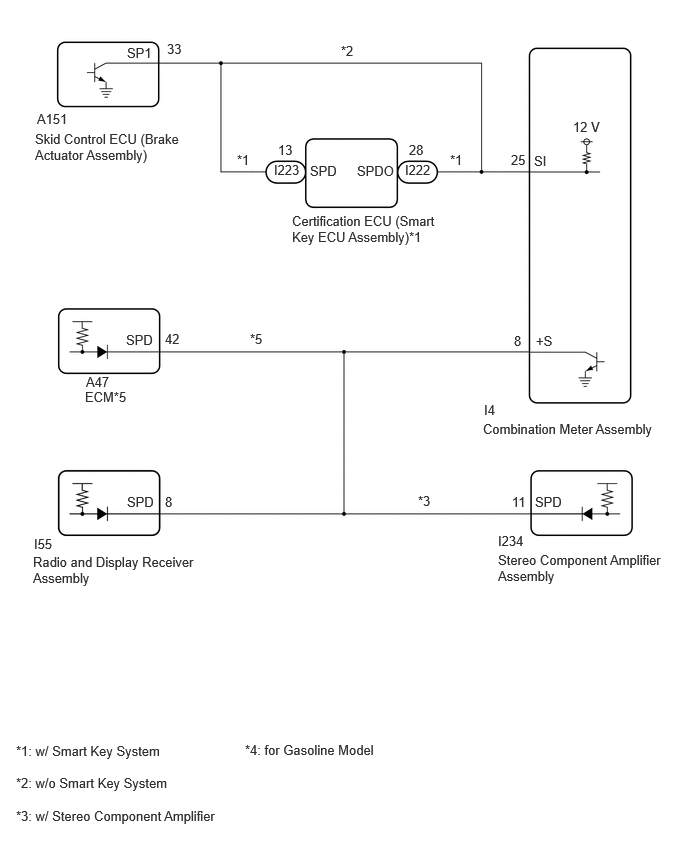

Speed Signal Circuit [11/2022 - 11/2023]: Wiring Diagram

GTY1119561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
