Fuel Receiver Gauge Malfunction [11/2023 - ]: Procedure

  1. CHECK FOR DTC (SFI SYSTEM)
    1. Check if SFI system DTCs are output.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Result:

    B

    GO TO SFI SYSTEM

    for M20A-FXS: Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2022 - ]

    for M20A-FKS: Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2023 - ]

    Result:

    A

    See step  2

  2. CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)
    1. Check if electronically controlled brake system DTCs are output. (for HEV Model)

      Chassis > Brake Booster > Trouble Codes

      Chassis > Brake/EPB > Trouble Codes

    2. Check if electronically controlled brake system DTCs are output. (for Gasoline Model)

      Chassis > Brake/EPB > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Result:

    B

    GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM

    for HEV Model: Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2022 - 12/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2024 - ]

    for Gasoline Model: Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2023 - 12/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2024 - ]

    Result:

    A

    See step  3

  3. CHECK FOR DTC (METER / GAUGE SYSTEM)
    1. Check if DTC B1500-13 or B1501-13 is output.

      Body Electrical > Combination Meter > Trouble Codes

      Result

      Result Proceed to
      B1500-13 or B1501-13 is not output A
      B1500-13 or B1501-13 is output B

    Result:

    B

    GO TO B1500-13 OR B1501-13

    Refer to DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [11/2022 - ]

    Result:

    A

    See step  4

  4. CHECK SYMPTOMS
    1. Ask the customer about the problem symptoms.

      Result

      Result Proceed to
      Malfunction occurs when adding fuel (Even when refueled, display value does not increase) A
      Malfunction occurs when adding fuel (When refueled, display value increase is slow) B
      Malfunction occurs during normal driving (The reading does not change, decreases quickly or decreases when the vehicle is not being driven, etc.) (The problem symptom recurs) C
      Malfunction occurs during normal driving (The reading does not change, decreases quickly or decreases when the vehicle is not being driven, etc.) (The problem symptom does not recur) D

    Result:

    B

    See step  6

    Result:

    C

    See step  8

    Result:

    D

    See step  10

    Result:

    A

    See step  5

  5. MANUALLY UPDATE FUEL RECEIVER GAUGE
    1. Perform a manual update of the fuel receiver gauge.

      Refer to PRECAUTION [11/2022 - ]

    2. Check that the display value of the fuel receiver gauge has changed.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END

    HINT:

    Symptom caused by amount of fuel filled being too low to trigger refueling judgment, or refueling in an undetectable range.

    Result:

    NG

    See step  6

  6. PERFORM ACTIVE TEST USING GTS
    1. Perform the Active Test according to the display on the GTS.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Fuel Gauge Operation (Sender E) Fuel receiver gauge
      (Fuel sender gauge lower limit)      		 ON See [Display 1]
      Fuel Gauge Operation (Empty) Fuel receiver gauge
      (Fuel receiver gauge indicates E)      		 ON See [Display 1]
      Fuel Gauge Operation (Warning) Fuel receiver gauge
      (Position at which fuel level warning light turns on/off)      		 ON See [Display 1]
      Fuel Gauge Operation (1/4) Fuel receiver gauge
      (Fuel receiver gauge indicates 1/4)      		 ON See [Display 1]
      Fuel Gauge Operation (1/2) Fuel receiver gauge
      (Fuel receiver gauge indicates 1/2)      		 ON See [Display 1]
      Fuel Gauge Operation (3/4) Fuel receiver gauge
      (Fuel receiver gauge indicates 3/4)      		 ON See [Display 1]
      Fuel Gauge Operation (Full) Fuel receiver gauge
      (Fuel receiver gauge indicates F)      		 ON See [Display 1]
      Fuel Gauge Operation (Sender F) Fuel receiver gauge
      (Fuel sender gauge upper limit)      		 ON See [Display 1]

      HINT:

      [Display 1]: Fuel Gauge Operation

      1. Refer to the following table for the specified fuel receiver gauge position for each selected value:
        FOR 4.2 INCH TYPE MULTI-INFORMATION DISPLAY

        Tester Display Fuel Receiver Gauge Indication
        Fuel Gauge Operation
        (Sender E)        		 Approximately 1 is indicated
        Fuel Gauge Operation
        (Empty)        		 Approximately 2 is indicated
        Fuel Gauge Operation
        (Warning)        		 Approximately 3 is indicated
        Fuel Gauge Operation
        (1/4)        		 Approximately 4 is indicated
        Fuel Gauge Operation
        (1/2)        		 Approximately 5 is indicated
        Fuel Gauge Operation
        (3/4)        		 Approximately 6 is indicated
        Fuel Gauge Operation
        (Full)        		 Approximately 7 is indicated
        Fuel Gauge Operation
        (Sender F)        		 Approximately 8 is indicated

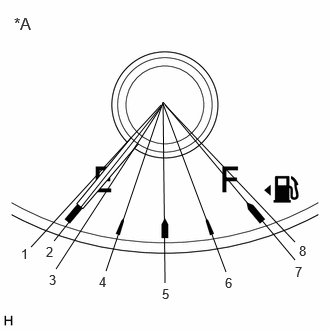

        GTY1120356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 4.2 Inch Type Multi-information Display

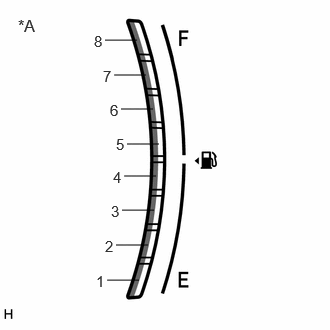

        GTY1121178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Type Multi-information Display
        FOR 7 INCH TYPE MULTI-INFORMATION DISPLAY

        Tester Display Fuel Receiver Gauge Indication
        Fuel Gauge Operation
        (Sender E)        		 Segments illuminate 0/8
        Fuel Gauge Operation
        (Empty)        		 Segments illuminate 1/8
        Fuel Gauge Operation
        (Warning)        		 Segments illuminate 1/8
        Fuel Gauge Operation
        (1/4)        		 Segments illuminate 2/8
        Fuel Gauge Operation
        (1/2)        		 Segments illuminate 4/8
        Fuel Gauge Operation
        (3/4)        		 Segments illuminate 6/8
        Fuel Gauge Operation
        (Full)        		 Segments illuminate 8/8
        Fuel Gauge Operation
        (Sender F)        		 Segments illuminate 8/8

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Sender E)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Empty)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Warning)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (1/4)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (1/2)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (3/4)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Full)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Sender F)

      Result

      Result Proceed to
      OK A
      NG B

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    A

    See step  7

  7. CHECK FUEL RECEIVER GAUGE (OPERATION BY ADDING FUEL)
    NOTE:

    As it is necessary to add more than a certain amount of fuel to the fuel tank, if the fuel level is near full, perform the following procedure then proceed to step (a). If the fuel tank is not near full, proceed to step (a) without performing the following procedure.

    1. Turn the ignition switch off.
    2. Remove 15 liters (15.9 US qts, 13.2 Imp. qts) or more of fuel from the fuel tank.
    3. Turn the ignition switch to ON.
    4. Wait 6 minutes or more.
    5. Confirm that the fuel receiver gauge indicates a value in accordance with the removed amount of fuel.
    1. Record the fuel receiver gauge reading.
    2. Turn the ignition switch off.
    3. Disconnect the cable from the negative (-) auxiliary battery terminal.

      HINT:

      This resets the current fuel level information stored by the combination meter assembly.

    4. Wait 2 minutes or more.
    5. Connect the cable to the negative (-) auxiliary battery terminal.
    6. Wait 15 seconds or more. (w/ Canister Pump Module)

      HINT:

      If the cable is disconnected from the negative (-) auxiliary battery terminal, the pressure inside the fuel tank will change. After the cable is reconnected to the negative (-) auxiliary battery terminal, it takes approximately 15 seconds for the pressure inside the fuel tank to be restored. During this time, the indicated value of the fuel receiver gauge may change.

    7. Turn the ignition switch to ON.
    8. Drive the vehicle at 2 km/h (1 mph) or more, and then stop the vehicle on a flat surface.
    9. Turn the ignition switch off.
    10. Wait 30 seconds or more.
    11. Add the following amount of fuel or more.
      1. 5.0 liters (5.3 US qts, 4.4 Imp. qts)
    12. Turn the ignition switch to ON.
    13. Check that the fuel receiver gauge reading increases in proportion to the amount of fuel added.
      NOTE:

      After turning the ignition switch to ON, it may take approximately 30 seconds until the fuel receiver gauge indicates the determined value.

      Result

      Result Proceed to
      Fuel receiver gauge reading increases in proportion to the amount of fuel added A
      Fuel receiver gauge reading does not change even when fuel is added B

    Result:

    A

    See step  10

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  8. PERFORM ACTIVE TEST USING GTS
    1. Perform the Active Test according to the display on the GTS.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Fuel Gauge Operation (Sender E) Fuel receiver gauge
      (Fuel sender gauge lower limit)      		 ON See [Display 1]
      Fuel Gauge Operation (Empty) Fuel receiver gauge
      (Fuel receiver gauge indicates E)      		 ON See [Display 1]
      Fuel Gauge Operation (Warning) Fuel receiver gauge
      (Position at which fuel level warning light turns on/off)      		 ON See [Display 1]
      Fuel Gauge Operation (1/4) Fuel receiver gauge
      (Fuel receiver gauge indicates 1/4)      		 ON See [Display 1]
      Fuel Gauge Operation (1/2) Fuel receiver gauge
      (Fuel receiver gauge indicates 1/2)      		 ON See [Display 1]
      Fuel Gauge Operation (3/4) Fuel receiver gauge
      (Fuel receiver gauge indicates 3/4)      		 ON See [Display 1]
      Fuel Gauge Operation (Full) Fuel receiver gauge
      (Fuel receiver gauge indicates F)      		 ON See [Display 1]
      Fuel Gauge Operation (Sender F) Fuel receiver gauge
      (Fuel sender gauge upper limit)      		 ON See [Display 1]

      HINT:

      [Display 1]: Fuel Gauge Operation

      1. Refer to the following table for the specified fuel receiver gauge position for each selected value:
        FOR 4.2 INCH TYPE MULTI-INFORMATION DISPLAY

        Tester Display Fuel Receiver Gauge Indication
        Fuel Gauge Operation
        (Sender E)        		 Approximately 1 is indicated
        Fuel Gauge Operation
        (Empty)        		 Approximately 2 is indicated
        Fuel Gauge Operation
        (Warning)        		 Approximately 3 is indicated
        Fuel Gauge Operation
        (1/4)        		 Approximately 4 is indicated
        Fuel Gauge Operation
        (1/2)        		 Approximately 5 is indicated
        Fuel Gauge Operation
        (3/4)        		 Approximately 6 is indicated
        Fuel Gauge Operation
        (Full)        		 Approximately 7 is indicated
        Fuel Gauge Operation
        (Sender F)        		 Approximately 8 is indicated
        GTY1120356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 4.2 Inch Type Multi-information Display
        GTY1121178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Type Multi-information Display
        FOR 7 INCH TYPE MULTI-INFORMATION DISPLAY

        Tester Display Fuel Receiver Gauge Indication
        Fuel Gauge Operation
        (Sender E)        		 Segments illuminate 0/8
        Fuel Gauge Operation
        (Empty)        		 Segments illuminate 1/8
        Fuel Gauge Operation
        (Warning)        		 Segments illuminate 1/8
        Fuel Gauge Operation
        (1/4)        		 Segments illuminate 2/8
        Fuel Gauge Operation
        (1/2)        		 Segments illuminate 4/8
        Fuel Gauge Operation
        (3/4)        		 Segments illuminate 6/8
        Fuel Gauge Operation
        (Full)        		 Segments illuminate 8/8
        Fuel Gauge Operation
        (Sender F)        		 Segments illuminate 8/8

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Sender E)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Empty)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Warning)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (1/4)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (1/2)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (3/4)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Full)

      Body Electrical > Combination Meter > Active Test

      Tester Display
      Fuel Gauge Operation (Sender F)

      Result

      Result Proceed to
      OK A
      NG B

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    A

    See step  9

  9. CHECK FUEL RECEIVER GAUGE
    1. Record the fuel receiver gauge reading.
    2. Turn the ignition switch off.
    3. Disconnect the cable from the negative (-) auxiliary battery terminal.

      HINT:

      This resets the current fuel level information stored by the combination meter assembly.

    4. Wait 2 minutes or more.
    5. Connect the cable to the negative (-) auxiliary battery terminal.
    6. Wait 30 seconds or more.
    7. Turn the ignition switch to ON.
    8. Check if the fuel receiver gauge reading corresponds with the amount of fuel remaining in the fuel tank.
      NOTE:

      After turning the ignition switch to ON, it may take approximately 30 seconds until the fuel receiver gauge indicates the determined value.

      Result

      Result Proceed to
      Fuel receiver gauge reading corresponds with the amount of fuel remaining in the fuel tank A
      Fuel receiver gauge reading does not correspond with the amount of fuel remaining in the fuel tank B

    Result:

    A

    See step  10

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  10. CHECK VEHICLE TYPE
    1. Check vehicle condition.

      Result

      Result Proceed to
      for 2WD with Gasoline Model A
      for AWD with Gasoline Model B
      for HEV Model C

    Result:

    B

    See step  12

    Result:

    C

    See step  13

    Result:

    A

    See step  11

  11. INSPECT FUEL TANK ASSEMBLY

    HINT:

    Inspect the fuel tank assembly and fuel sender assembly for deformation, foreign matter or an improperly installed fuel receiver gauge, as this may be the cause of the fuel receiver gauge malfunction.

    1. Visually check the fuel tank assembly for any abnormalities.
    2. Check if there is an excessive amount of foreign matter in the fuel tank assembly.
    3. Visually check the fuel sender gauge assembly for damage and confirm that it operates correctly.
    4. Check the installation condition of the fuel tank assembly and fuel sender gauge assembly.

      Result

      Result Proceed to
      Normal A
      Appearance of the fuel tank assembly is abnormal B
      There is an excessive amount of foreign matter in the fuel tank assembly C
      The fuel sender gauge assembly is visually damaged or does not operate correctly D
      The fuel tank assembly or fuel sender gauge assembly is not installed correctly E

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    B

    REPLACE FUEL TANK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    C

    CLEAN INSIDE OF FUEL TANK ASSEMBLY

    Result:

    D

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    E

    INSTALL FUEL TANK ASSEMBLY OR FUEL SENDER GAUGE ASSEMBLY CORRECTLY

  12. INSPECT FUEL TANK ASSEMBLY

    HINT:

    Inspect the fuel tank assembly and fuel sender assembly for deformation, foreign matter or an improperly installed fuel receiver gauge, as this may be the cause of the fuel receiver gauge malfunction.

    1. Visually check the fuel tank sub-assembly for any abnormalities.
    2. Check if there is an excessive amount of foreign matter in the fuel tank sub-assembly.
    3. Visually check the fuel sender gauge assembly and No. 2 fuel sender gauge assembly for damage and confirm that it operates correctly.
    4. Check the installation condition of the fuel tank assembly fuel sender gauge assembly and No. 2 fuel sender gauge assembly.

      Result

      Result Proceed to
      Normal A
      Appearance of the fuel tank sub-assembly is abnormal B
      There is an excessive amount of foreign matter in the fuel tank sub-assembly C
      The fuel sender gauge assembly is visually damaged or does not operate correctly D
      The No. 2 fuel sender gauge assembly is visually damaged or does not operate correctly E
      The fuel tank sub-assembly or fuel sender gauge assembly is not installed correctly F

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    B

    REPLACE FUEL TANK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    C

    CLEAN INSIDE OF FUEL TANK ASSEMBLY

    Result:

    D

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    E

    REPLACE NO. 2 FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    F

    INSTALL FUEL TANK ASSEMBLY OR FUEL SENDER GAUGE ASSEMBLY CORRECTLY

  13. INSPECT FUEL TANK ASSEMBLY

    HINT:

    Inspect the fuel tank assembly and fuel sender assembly for deformation, foreign matter or an improperly installed fuel receiver gauge, as this may be the cause of the fuel receiver gauge malfunction.

    1. Visually check the fuel tank assembly for any abnormalities.
    2. Check if there is an excessive amount of foreign matter in the fuel tank assembly.
    3. Visually check the fuel sender gauge assembly for damage and confirm that it operates correctly.
    4. Check the installation condition of the fuel tank assembly and fuel sender gauge assembly.

      Result

      Result Proceed to
      Normal A
      Appearance of the fuel tank assembly is abnormal B
      There is an excessive amount of foreign matter in the fuel tank assembly C
      The fuel sender gauge assembly is visually damaged or does not operate correctly D
      The fuel tank assembly or fuel sender gauge assembly is not installed correctly E

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    B

    REPLACE FUEL TANK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    C

    CLEAN INSIDE OF FUEL TANK ASSEMBLY

    Result:

    D

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    E

    INSTALL FUEL TANK ASSEMBLY OR FUEL SENDER GAUGE ASSEMBLY CORRECTLY

scientia non olet · About LEMON Manuals
