Engine Coolant Temperature Receiver Gauge Malfunction [09/2021 - 11/2022]: Procedure

1. Check if CAN communication system DTCs are output.

   Refer to DIAGNOSIS SYSTEM [09/2021 - 11/2022]

   Result

   Result	Proceed to
   DTCs are not output	A
   DTCs are output	B

Result:

B

GO TO CAN COMMUNICATION SYSTEM

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2021 - 11/2022]

Result:

A

See step  2

1. Check if SFI system DTCs are output.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTCs are output	B

Result:

B

GO TO SFI SYSTEM

Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2021 - 11/2022]

Result:

A

See step  3

1. Perform the Active Test according to the display on the GTS.

   Body Electrical > Combination Meter > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Water Temperature Meter Operation (50C, 122F)	Engine coolant temperature receiver gauge (50°C, 122°F)	ON	See [Display 1]
   Water Temperature Meter Operation (60C, 140F)	Engine coolant temperature receiver gauge (60°C, 140°F)	ON	See [Display 1]
   Water Temperature Meter Operation (70C, 158F)	Engine coolant temperature receiver gauge (70°C, 158°F)	ON	See [Display 1]
   Water Temperature Meter Operation (80C, 176F)	Engine coolant temperature receiver gauge (80°C, 176°F)	ON	See [Display 1]
   Water Temperature Meter Operation (Middle)	Engine coolant temperature receiver gauge (Middle)	ON	See [Display 1]
   Water Temperature Meter Operation (110C, 230F)	Engine coolant temperature receiver gauge (110°C, 230°F)	ON	See [Display 1]
   Water Temperature Meter Operation (120C, 248F)	Engine coolant temperature receiver gauge (120°C, 248°F)	ON	See [Display 1]
   Water Temperature Meter Operation (127C, 260F)	Engine coolant temperature receiver gauge (127°C, 260°F)	ON	See [Display 1]

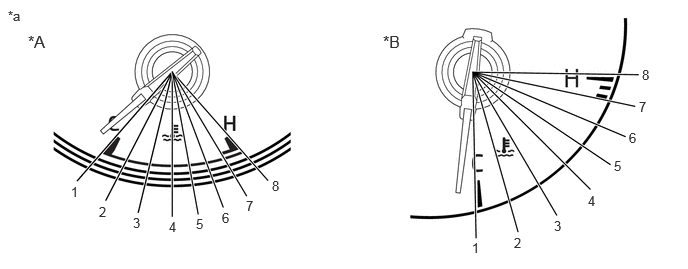

   [Display 1]: Water Temperature Meter Operation

   1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A	for 4.2 Inch Type Multi-information Display	*B	for 7 Inch Type Multi-information Display
      *a	Engine Coolant Temperature Receiver Gauge	-	-

      HINT:

      Refer to the following table for the specified engine coolant temperature receiver gauge position for each selected value:

      Tester Display	engine coolant temperature receiver gauge indication
      Water Temperature Meter Operation (50C, 122F)	Between 1 and 2 is indicated
      Water Temperature Meter Operation (60C, 140F)	Between 2 and 3 is indicated
      Water Temperature Meter Operation (70C, 158F)	Between 3 and 4 is indicated
      Water Temperature Meter Operation (80C, 176F)	Approximately 4 is indicated
      Water Temperature Meter Operation (Middle)	Approximately 4 is indicated
      Water Temperature Meter Operation (110C, 230F)	Between 5 and 6 is indicated
      Water Temperature Meter Operation (120C, 248F)	Approximately 7 is indicated
      Water Temperature Meter Operation (127C, 260F)	Approximately 8 is indicated

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (50C, 122F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (60C, 140F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (70C, 158F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (80C, 176F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (Middle)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (110C, 230F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (120C, 248F)

   Body Electrical > Combination Meter > Active Test

   Tester Display
   Water Temperature Meter Operation (127C, 260F)

   OK

   Engine coolant temperature receiver gauge indication is normal.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM

Refer to REMOVAL [09/2021 - 11/2022]

Result:

NG

REPLACE COMBINATION METER ASSEMBLY

Refer to REMOVAL [09/2021 - 11/2022]
