Parts Location [12/2024 - ]: Illustration
| *A | for Gasoline Model | *B | w/ Washer Fluid Level Warning System |
| *1 | ECM | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *A | for HEV Model | *B | w/ Washer Fluid Level Warning System |
| *1 | ECM | *2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | - | - |
| *A | for Bulb Type Clearance Light | *B | w/ Side Turn Signal Light |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *4 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | FRONT TURN SIGNAL LIGHT SOCKET | - | - |

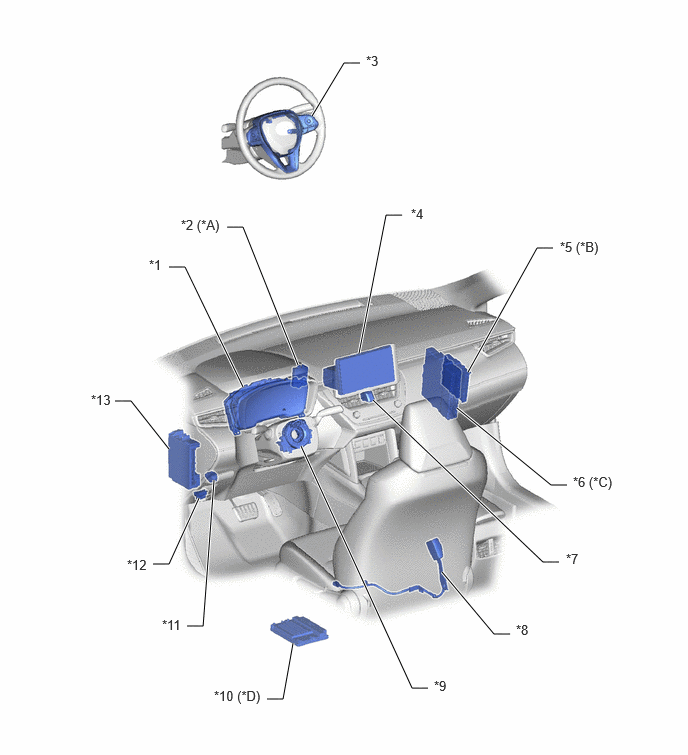

| *A | w/o Smart Key System | *B | w/ Smart Key System |
| *C | for HEV Model | *D | w/ Stereo Component Amplifier |
| *1 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*2 | TRANSPONDER KEY ECU ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *8 | FRONT SEAT INNER BELT ASSEMBLY LH |
| *9 | SPIRAL CABLE SUB-ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *11 | LIGHT CONTROL RHEOSTAT | *12 | DLC3 |
| *13 | POWER DISTRIBUTION BOX ASSEMBLY - METER-IGR (for HEV Model) - HAZ FUSE |
- | - |
| *A | for Gasoline Model | *B | for HEV Model |
| *C | for 2WD | *D | for AWD |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK VENT TUBE ASSEMBLY - NO. 2 FUEL SENDER GAUGE ASSEMBLY |
- | - |
