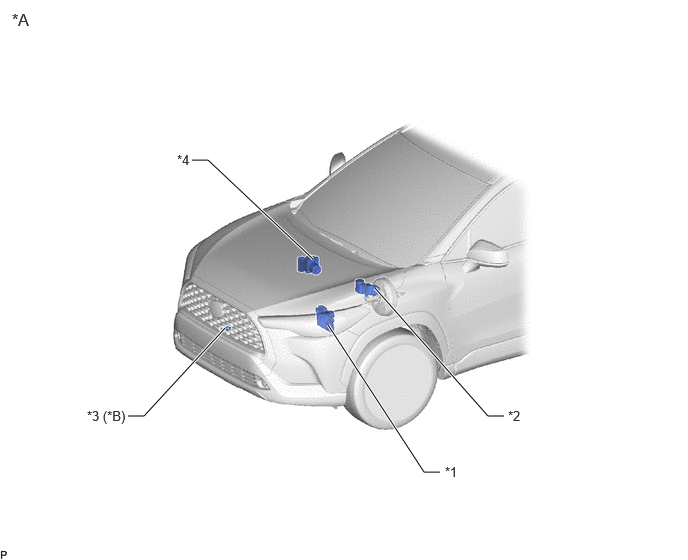

Parts Location [11/2022 - 12/2024]: Illustration
| *A | for Gasoline Model | *B | w/ Washer Fluid Level Warning System |
| *1 | ECM | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *A | for HEV Model | *B | w/ Washer Fluid Level Warning System |
| *1 | ECM | *2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | - | - |

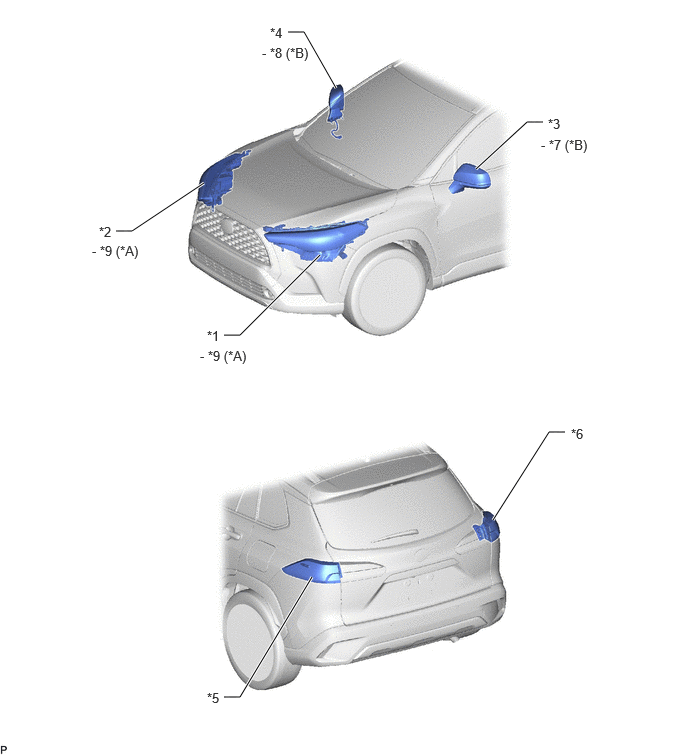

| *A | for Bulb Type Clearance Light | *B | w/ Side Turn Signal Light |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *4 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | FRONT TURN SIGNAL LIGHT SOCKET | - | - |

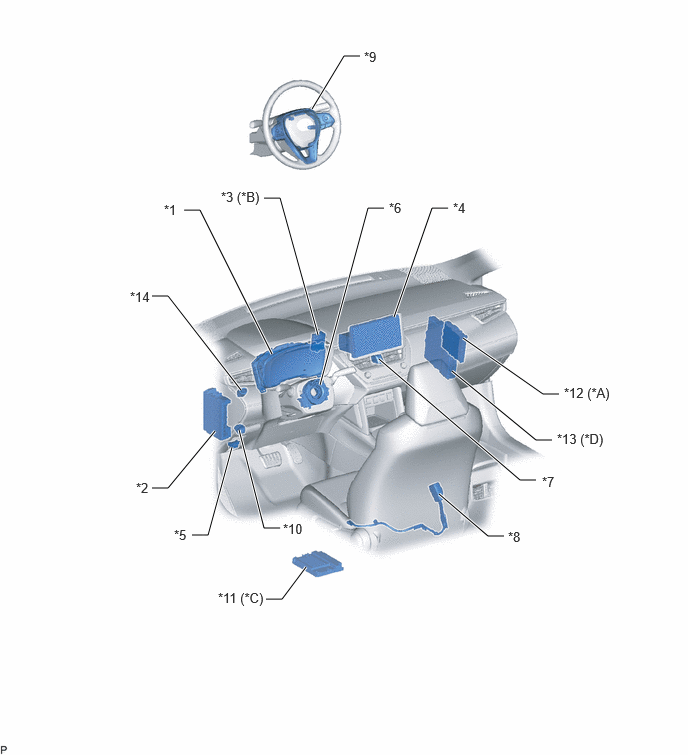

| *A | w/ Smart Key System | *B | w/o Smart Key System |
| *C | w/ Stereo Component Amplifier | *D | for HEV Model |
| *1 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*2 | POWER DISTRIBUTION BOX ASSEMBLY - METER-IGR (for HEV Model) - HAZ FUSE |
| *3 | TRANSPONDER KEY ECU ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | DLC3 | *6 | SPIRAL CABLE SUB-ASSEMBLY |
| *7 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *8 | FRONT SEAT INNER BELT ASSEMBLY LH |
| *9 | STEERING PAD SWITCH ASSEMBLY | *10 | LIGHT CONTROL RHEOSTAT |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *13 | HYBRID VEHICLE CONTROL ECU | *14 | STOP LIGHT SWITCH ASSEMBLY |

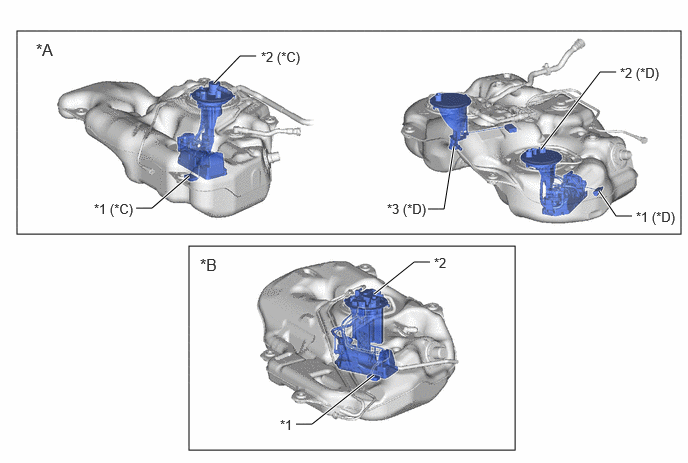

| *A | for Gasoline Model | *B | for HEV Model |
| *C | for 2WD | *D | for AWD |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK VENT TUBE ASSEMBLY - NO. 2 FUEL SENDER GAUGE ASSEMBLY |
- | - |
