Tachometer Malfunction [11/2022 - 11/2023]: Wiring Diagram

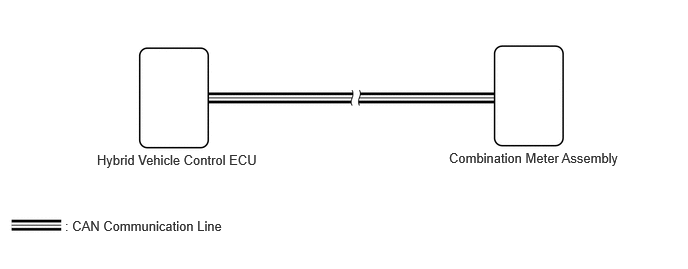

for HEV Model:

GTY1112636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

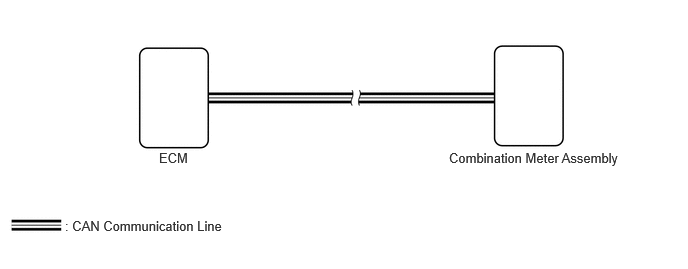

for Gasoline Model:

GTY1112635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
