Entire Combination Meter does not Operate [11/2022 - ]: Procedure

1. Disconnect the combination meter assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I4-1 (EP) - Body ground	Always	Below 1 Ω
   I4-2 (ES) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   I4-6 (IG+) - Body ground	Ignition switch off	Below 1 V
   	Ignition switch ON*1	11 to 14 V
   	Ignition switch ON*2	10.5 to 16 V
   I4-5 (B) - Body ground	Ignition switch off	11 to 14 V

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

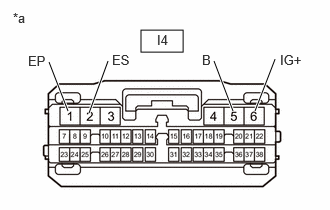

   *a	Front view of wire harness connector (to Combination Meter Assembly)

   1. *1: for HEV Model
   2. *2: for Gasoline Model

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [11/2022 - 11/2023]  , or refer to  REMOVAL [11/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
