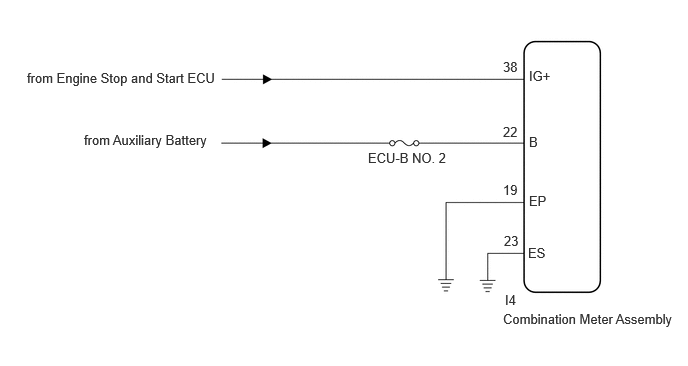

Entire Combination Meter does not Operate [09/2021 - 11/2022]: Wiring Diagram

GTY1028826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
