Meter / Gauge System - Diagnostic Codes & Symptom Tests (1 Of 2)
>>
Meter / Gauge System
>>
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [11/2022 - ]
>>

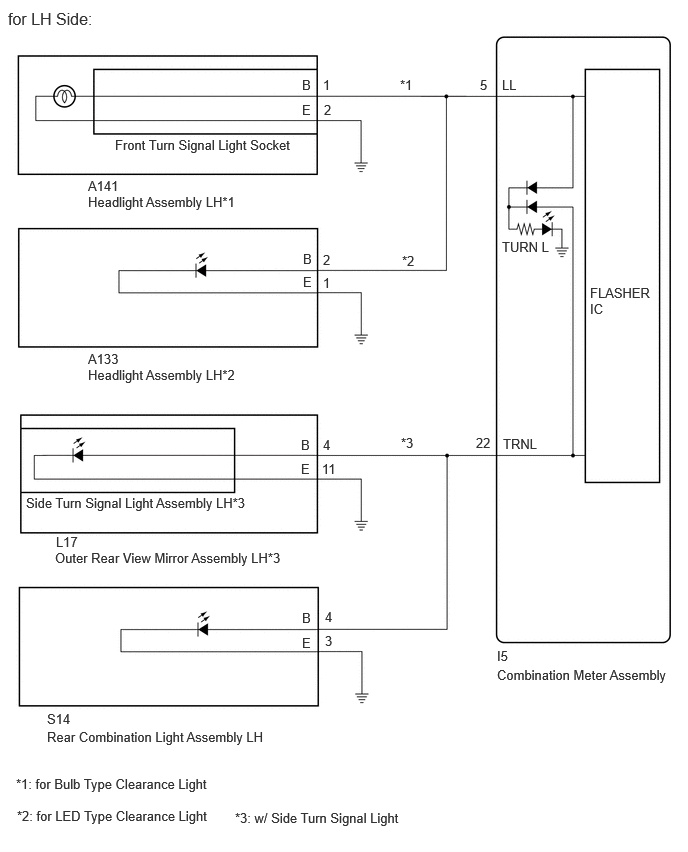

Wiring Diagram
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [11/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
