DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [09/2021 - 11/2022]: Wiring Diagram

GTY1028626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

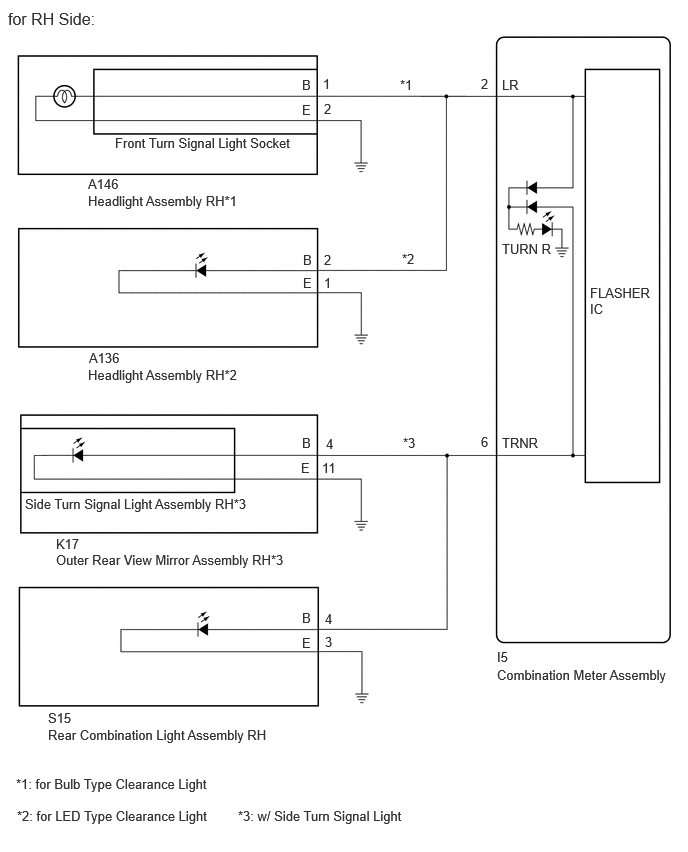

GTY1028627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
