Meter / Gauge System
>>
DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [09/2021 - 11/2022]
>>

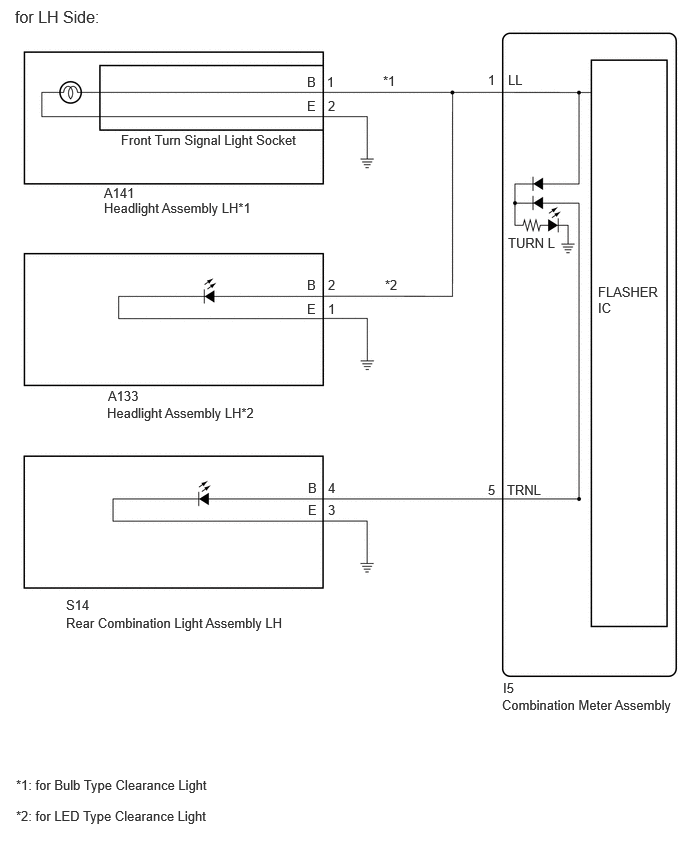

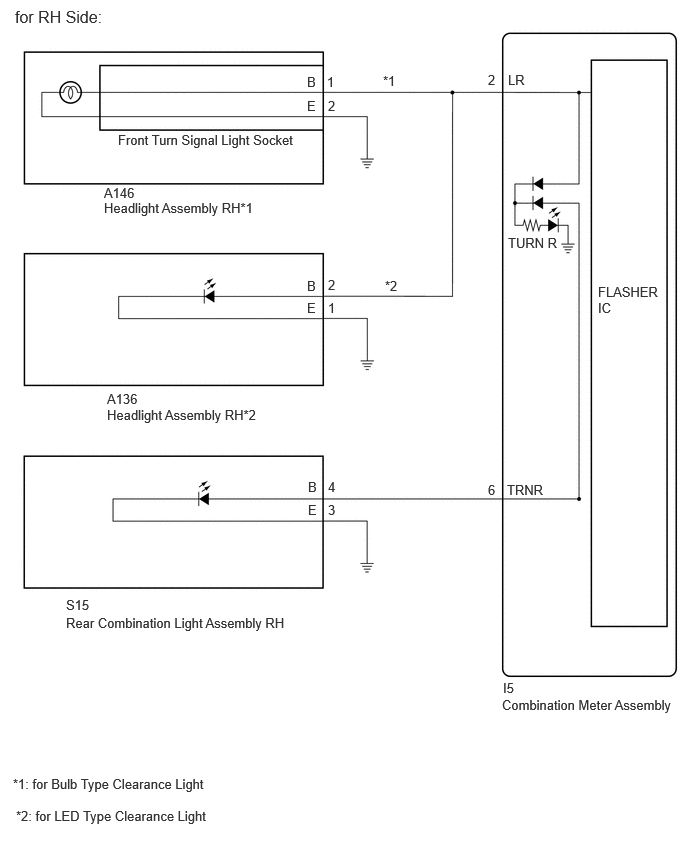

Wiring Diagram
DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [09/2021 - 11/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
