DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [11/2022 - ]: Wiring Diagram

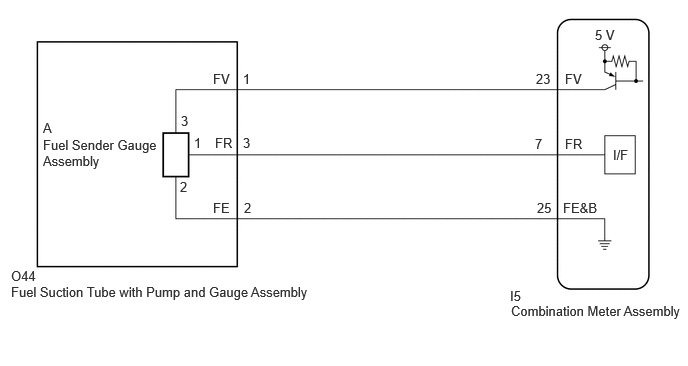

  1. for 2WD with Gasoline Model
    GTY1109822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for HEV Model
    GTY1109823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

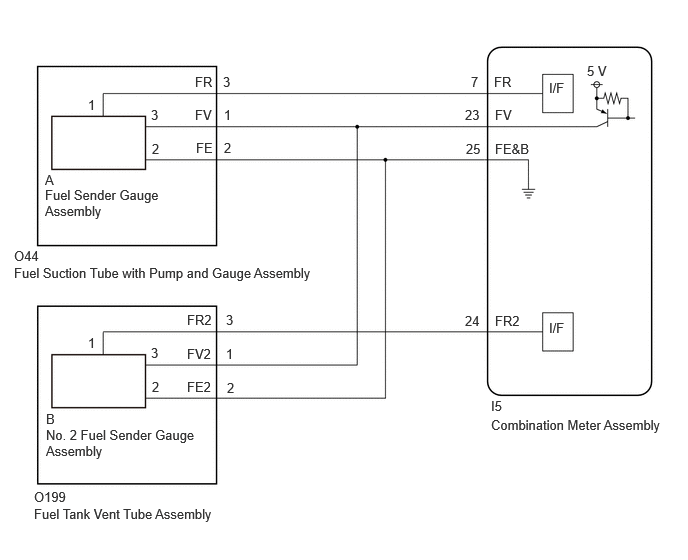

  3. for AWD with Gasoline Model
    GTY1111195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
