DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [11/2022 - ]: Procedure

  1. CHECK FOR DTC
    1. Check for DTCs

      Body Electrical > Combination Meter > Trouble Codes

      Result

      Result Proceed to
      B1500-13 is output A
      B1501-13 is output B
      B1500-13 and B1501-13 are output C

    Result:

    B

    See step  10

    Result:

    C

    See step  14

    Result:

    A

    See step  2

  2. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel input Min.: 0.00 L, Max.: 655.35 L or Unset Fuel sender input value -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the GTS. A
      Fuel level data cannot be displayed on the GTS B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    B

    See step  3

  3. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      for Gasoline Model A
      for HEV Model B

    Result:

    B

    See step  7

    Result:

    A

    See step  4

  4. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the O44 fuel suction tube with pump and gauge assembly connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O44-1 (FV) - I5-23 (FV) Always Below 1 Ω
      O44-3 (FR) - I5-7 (FR) Always Below 1 Ω
      O44-2 (FE) - I5-25 (FE&B) Always Below 1 Ω
      O44-1 (FV) or I5-23 (FV) - Body ground Always 10 kΩ or higher
      O44-3 (FR) or I5-7 (FR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. for 2WD:

      Refer to INSPECTION [09/2021 - ]

    2. for AWD:

      Refer to INSPECTION [09/2021 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    for 2WD: Refer to REMOVAL [11/2022 - ]

    for AWD: Refer to REMOVAL [11/2022 - ]

    Result:

    OK

    See step  6

  6. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.
      GTY1112248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Suction Tube with Pump and Gauge Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      O44-1 (FV) - A-3 Always Below 1 Ω
      O44-2 (FE) - A-2 Always Below 1 Ω
      O44-3 (FR) - A-1 Always Below 1 Ω
      O44-1 (FV) - O44-3 (FR) or A-3 - A-1 Always 10 kΩ or higher
      O44-1 (FV) - O44-2 (FE) or A-3 - A-2 Always 10 kΩ or higher
      O44-2 (FE) - O44-3 (FR) or A-2 - A-1 Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    for 2WD: Refer to REMOVAL [11/2022 - ]

    for AWD: Refer to REMOVAL [11/2022 - 12/2024] , or refer to REMOVAL [12/2024 - ]

  7. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the O217 fuel suction tube with pump and gauge assembly connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O217-1 (FV) - I5-23 (FV) Always Below 1 Ω
      O217-3 (FR) - I5-7 (FR) Always Below 1 Ω
      O217-2 (FE) - I5-25 (FE&B) Always Below 1 Ω
      O217-1 (FV) or I5-23 (FV) - Body ground Always 10 kΩ or higher
      O217-3 (FR) or I5-7 (FR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. INSPECT FUEL SENDER GAUGE ASSEMBLY

    Refer to INSPECTION [11/2022 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    OK

    See step  9

  9. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

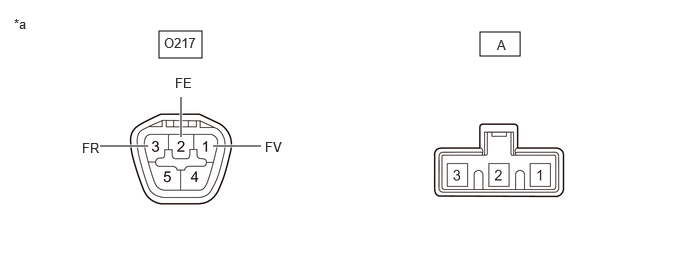

      GTY1112249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Suction Tube with Pump and Gauge Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      O217-1 (FV) - A-3 Always Below 1 Ω
      O217-2 (FE) - A-2 Always Below 1 Ω
      O217-3 (FR) - A-1 Always Below 1 Ω
      O217-1 (FV) - O217-3 (FR) or A-3 - A-1 Always 10 kΩ or higher
      O217-1 (FV) - O217-2 (FE) or A-3 - A-2 Always 10 kΩ or higher
      O217-2 (FE) - O217-3 (FR) or A-2 - A-1 Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  10. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Sub Fuel Input Sub fuel input Min.: 0.00 L, Max.: 655.35 L or Unset Fuel sender input value -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Sub Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the GTS. A
      Fuel level data cannot be displayed on the GTS B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    B

    See step  11

  11. CHECK HARNESS AND CONNECTOR (FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the O199 fuel tank vent tube assembly connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O199-3 (FR2) - I5-24 (FR2) Always Below 1 Ω
      O199-1 (FV2) - I5-23 (FV) Always Below 1 Ω
      O199-2 (FE2) - I5-25 (FE&B) Always Below 1 Ω
      O199-3 (FR2) or I5-24 (FR2)- Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  12

  12. INSPECT NO. 2 FUEL SENDER GAUGE ASSEMBLY

    Refer to INSPECTION [09/2021 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE NO. 2 FUEL SENDER GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    OK

    See step  13

  13. INSPECT FUEL TANK VENT TUBE ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

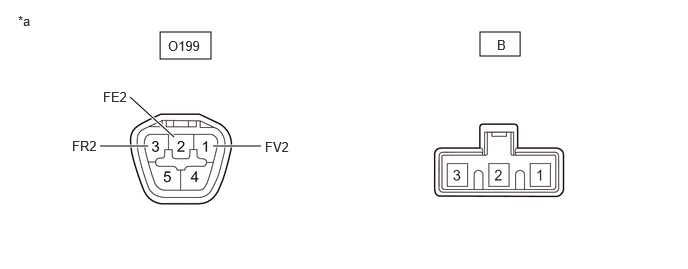

      GTY1112250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Tank Vent Tube Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      O199-1 (FV2) - B-3 Always Below 1 Ω
      O199-2 (FE2) - B-2 Always Below 1 Ω
      O199-3 (FR2) - B-1 Always Below 1 Ω
      O199-1 (FV2) - O199-2 (FE2) or B-3 - B-2 Always 10 kΩ or higher
      O199-1 (FV2) - O199-3 (FR2) or B-3 - B-1 Always 10 kΩ or higher
      O199-2 (FE2) - O199-3 (FR2) or B-2 - B-1 Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPLACE FUEL TANK VENT TUBE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  14. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel input Min.: 0.00 L, Max.: 655.35 L or Unset Fuel sender input value -
      Sub Fuel Input Sub fuel input Min.: 0.00 L, Max.: 655.35 L or Unset Fuel sender input value -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input
      Sub Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the GTS. A
      Fuel level data cannot be displayed on the GTS B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    B

    See step  15

  15. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY AND FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the O44 fuel suction tube with pump and gauge assembly connector.
    2. Disconnect the O199 fuel tank vent tube assembly connector.
    3. Disconnect the I5 combination meter assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O44-1 (FV) - I5-23 (FV) Always Below 1 Ω
      O44-2 (FE) - I5-25 (FE&B) Always Below 1 Ω
      O199-1 (FV2) - I5-23 (FV) Always Below 1 Ω
      O199-2 (FE2) - I5-25 (FE&B) Always Below 1 Ω
      O44-1 (FV), O199-1 (FV2) or I5-23 (FV)- Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
