DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [09/2021 - 11/2022]: Wiring Diagram

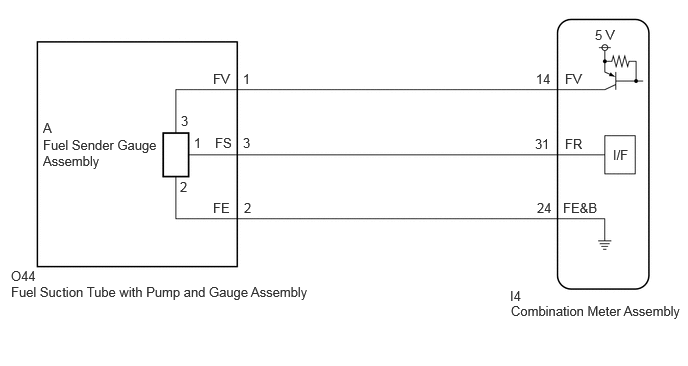

  1. for 2WD
    GTY1027916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

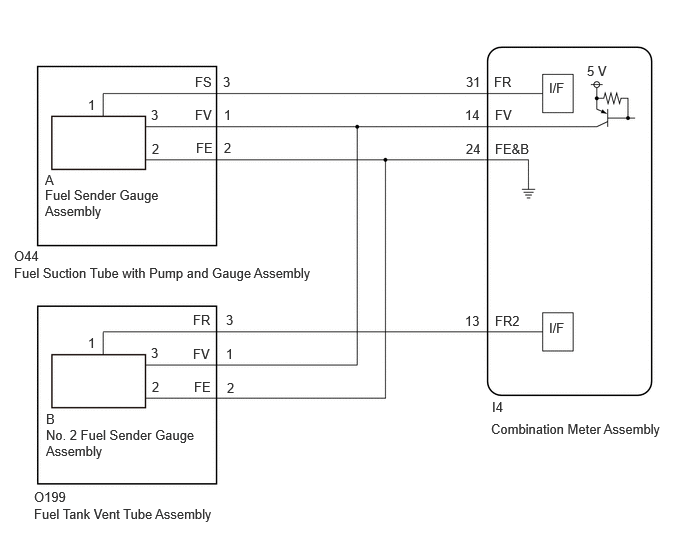

  2. for AWD
    GTY1027661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
