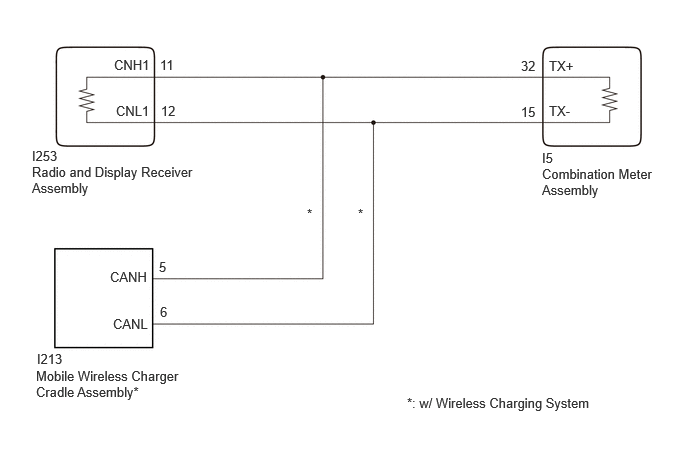

DTC B1321-87: Lost Communication with EMV Missing Message [11/2023 - ]: Wiring Diagram

  1. GTY1180449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
