DTC B1321-87: Lost Communication with EMV Missing Message [09/2021 - 11/2022]: Procedure

1. Check if meter/gauge system DTCs are output.

   Body Electrical > Combination Meter > Trouble Codes

2. Check if navigation system DTCs are output.

   Body Electrical > Navigation System > Trouble Codes

3. Check the DTCs and output pattern according to the following table.

   Pattern	DTC Output Part Name (Display on GTS)
   	Combination Meter Assembly (Combination Meter)	Radio and Display Receiver Assembly (Navigation System)
   Pattern 1	B1321-87	B1324
   Pattern 2	B1321-87	-

   Result

   Result	Proceed to
   Pattern 1 is output	A
   Pattern 2 is output	B

Result:

A

GO TO AUDIO AND VISUAL SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2021 - 11/2022]

Result:

B

See step  2

1. Disconnect the combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

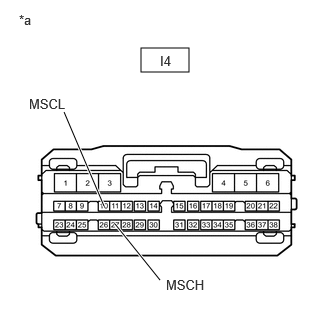

   *a	Front view of wire harness connector (to Combination Meter Assembly)

2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Switch Condition	Tool Setting	Specified Condition
   I4-27 (MSCH) - I4-10 (MSCL)	Ignition switch ON	1 V/DIV., 100 μs./DIV.	Pulse generation

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2021 - 11/2022]

Result:

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2021 - 11/2022]
