Components [08/2020 - ]

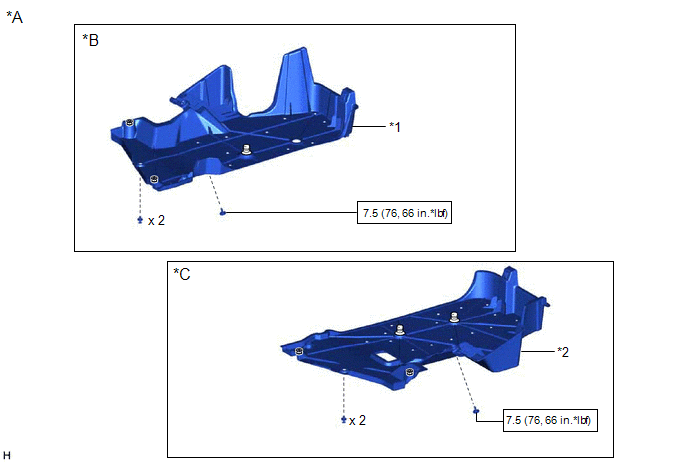

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications (1 Of 7) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Gasoline Model 2WD	*B	for RH Side
*C	for LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

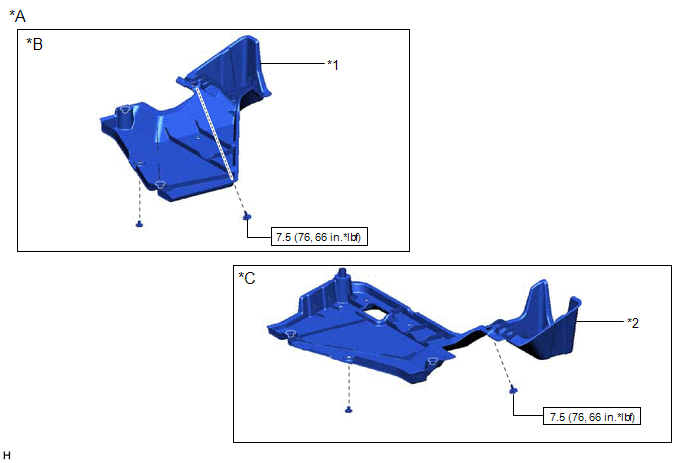

Fig 2: Rear Trailing Arm Replacement Components With Torque Specifications (2 Of 7) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	*B	for RH Side
*C	for LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

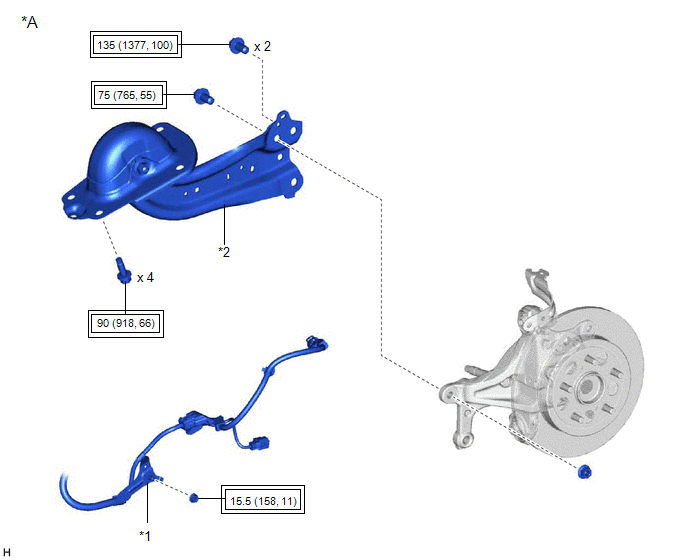

Fig 3: Rear Trailing Arm Replacement Components With Torque Specifications (3 Of 7) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Gasoline Model AWD	*B	for RH Side
*C	for LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

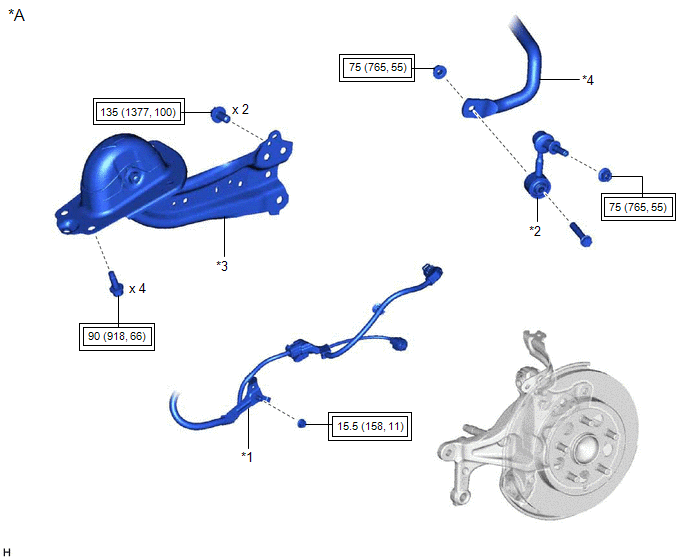

Fig 4: Rear Trailing Arm Replacement Components With Torque Specifications (4 Of 7) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD without AVS	-	-
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR STABILIZER LINK ASSEMBLY
*3	REAR TRAILING ARM ASSEMBLY	*4	REAR STABILIZER BAR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

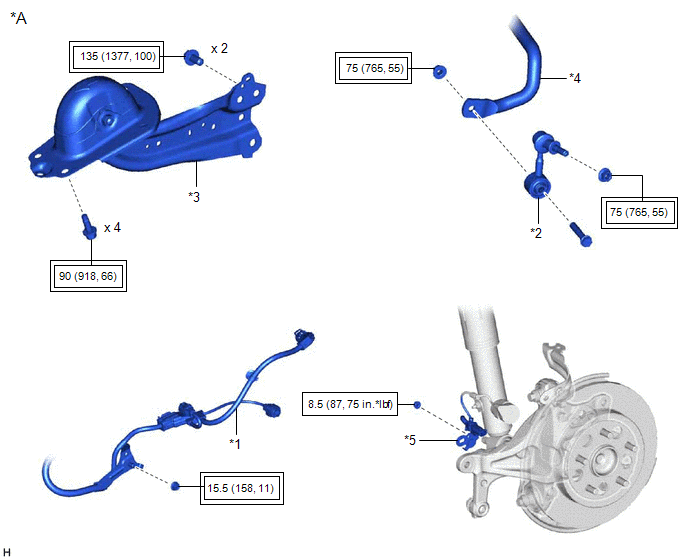

Fig 5: Rear Trailing Arm Replacement Components With Torque Specifications (5 Of 7) [08/2020 - ]

Callout	Description	Callout	Description
*A	for 2WD with AVS	-	-
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR STABILIZER LINK ASSEMBLY
*3	REAR TRAILING ARM ASSEMBLY	*4	REAR STABILIZER BAR
*5	WIRE HARNESS BRACKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

Fig 6: Rear Trailing Arm Replacement Components With Torque Specifications (6 Of 7) [08/2020 - ]

Callout	Description	Callout	Description
*A	for Gasoline Model AWD	-	-
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR TRAILING ARM ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Fig 7: Rear Trailing Arm Replacement Components With Torque Specifications (7 Of 7) [08/2020 - ]

Callout	Description	Callout	Description
*1	REAR SUSPENSION ARM BRACKET	*2	REAR SUSPENSION ARM COVER
*3	REAR TRAILING ARM ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
