Components [04/2018 - 08/2020]
Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 4) [04/2018 - 08/2020]
| Callout | Description | Callout | Description |
| *A | for Gasoline Model | *B | for RH Side |
| *C | for LH Side | - | - |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

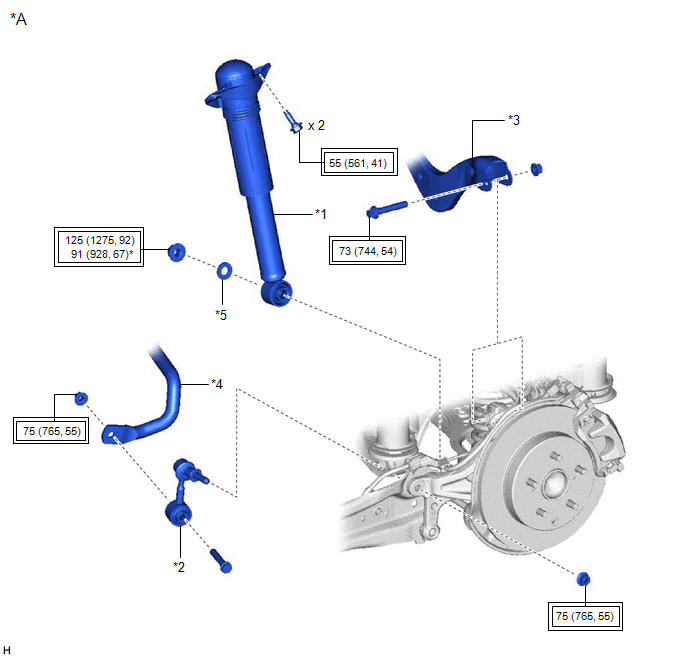

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 4) [04/2018 - 08/2020]
| Callout | Description | Callout | Description |
| *A | w/o AVS | - | - |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |

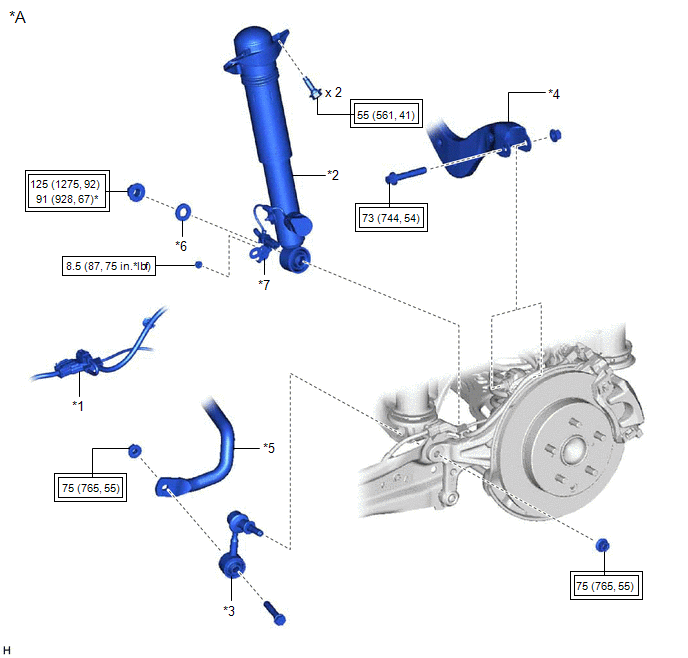

Fig 3: Rear Shock Absorber Replacement Components With Torque Specifications (3 Of 4) [04/2018 - 08/2020]
| Callout | Description | Callout | Description |
| *A | w/ AVS | - | - |
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR SHOCK ABSORBER ASSEMBLY |
| *3 | REAR STABILIZER LINK ASSEMBLY | *4 | REAR UPPER CONTROL ARM ASSEMBLY |
| *5 | REAR STABILIZER BAR | *6 | PLATE WASHER |
| *7 | WIRE HARNESS BRACKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with a ball joint lock nut wrench | - | - |
Fig 4: Rear Shock Absorber Replacement Components With Torque Specifications (4 Of 4) [04/2018 - 08/2020]
| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
