Components [08/2020 - ]

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (1 Of 4) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Gasoline Model 2WD	*B	for RH Side
*C	for LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

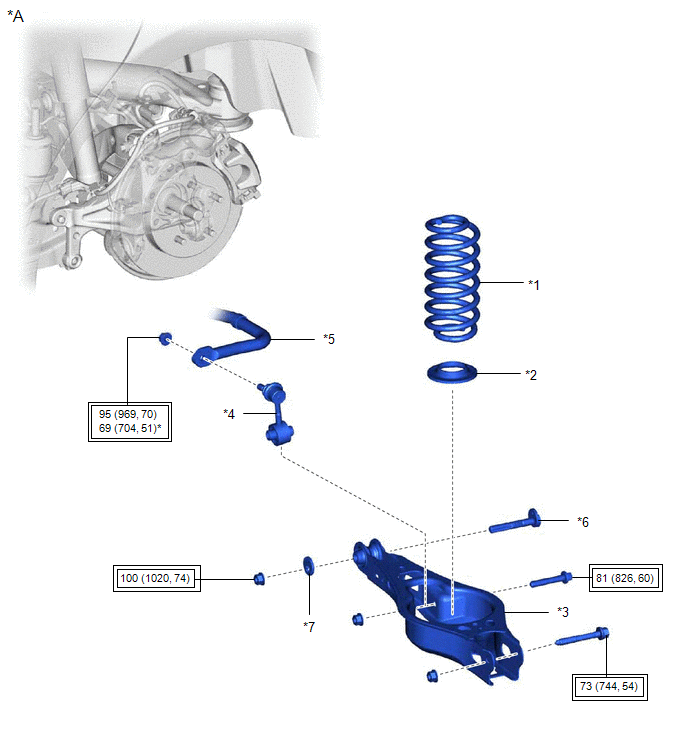

Fig 2: Rear Lower Arm Replacement Components With Torque Specifications (2 Of 4) [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	REAR COIL SPRING	*2	REAR LOWER COIL SPRING INSULATOR
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR STABILIZER LINK ASSEMBLY
*5	REAR STABILIZER BAR	*6	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*7	NO. 2 CAMBER ADJUST CAM	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

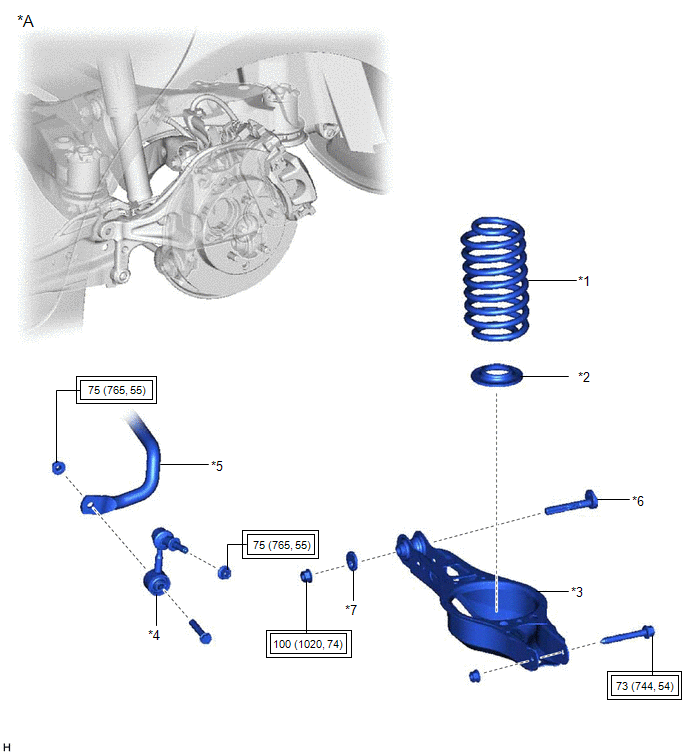

Fig 3: Rear Lower Arm Replacement Components With Torque Specifications (3 Of 4) [08/2020 - ]

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	REAR COIL SPRING	*2	REAR LOWER COIL SPRING INSULATOR
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR STABILIZER LINK ASSEMBLY
*5	REAR STABILIZER BAR	*6	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*7	NO. 2 CAMBER ADJUST CAM	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

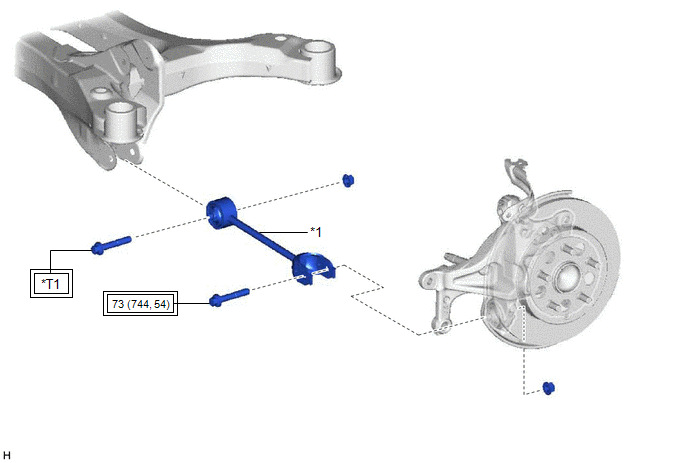

Fig 4: Rear Lower Arm Replacement Components With Torque Specifications (4 Of 4) [08/2020 - ]

Callout	Description	Callout	Description
*1	REAR NO. 1 SUSPENSION ARM ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	*T1	for 2WD: 73 Nm (744 kgfcm, 54 ft.lbf) for AWD: 115 Nm (1173 kgfcm, 85 ft.lbf)
