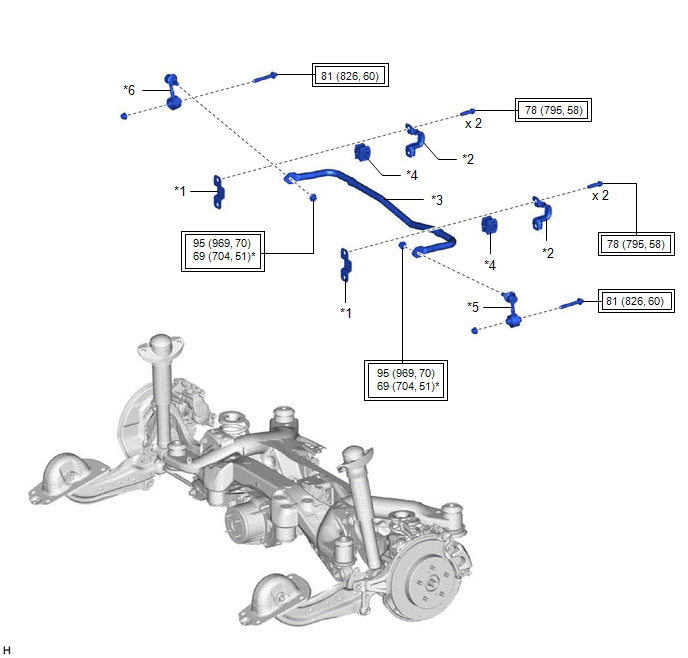

Components [08/2020 - ]
| Callout | Description | Callout | Description |
| *1 | REAR LOWER STABILIZER BRACKET | *2 | REAR NO. 1 STABILIZER BAR BRACKET |
| *3 | REAR STABILIZER BAR | *4 | REAR STABILIZER BUSHING |
| *5 | REAR STABILIZER LINK ASSEMBLY LH | *6 | REAR STABILIZER LINK ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
