Installation [04/2018 - 08/2020]: Procedure

INSTALL REAR SEAT BELT RETRACTOR COVER LH

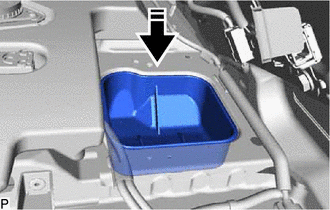

Install the rear seat belt retractor cover LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL REAR SEAT BELT RETRACTOR COVER RH
HINT:

Use the same procedure as for the LH side.
INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
See step 1

INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

Engage the guide and temporarily install the rear seat 3 point type belt assembly LH with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

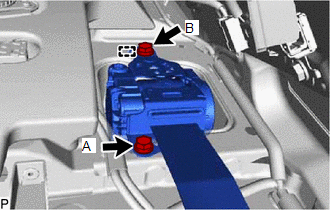

Fully tighten the bolt (A), and then the bolt (B) to install the rear seat 3 point type belt assembly LH.
Bolt (A)

Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Bolt (B)

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

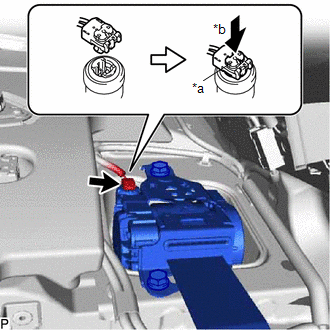

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTE:

Securely lock the locking button.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Locking Button
*b	Lock

Check that the ELR locks.
NOTE:
This check should be performed with the rear seat outer belt assembly LH installed to the vehicle.
1. With the rear seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
1. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
2. Engage the 3 clips and 5 guides.
3. Install the package tray trim panel assembly with the 2 clips.
4. Return the rear seatback assembly LH and rear seatback assembly RH to their original position.
INSTALL REAR SEAT SHOULDER BELT COVER
1. Engage the 2 guides and 2 claws to install the rear seat shoulder belt hole cover.
  HINT:

  Use the same procedure for the other rear seat shoulder belt hole covers.
INSTALL CENTER STOP LIGHT SET
Refer to INSTALLATION [04/2018 - ]

CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

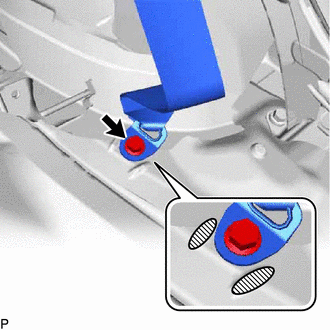

Install the floor anchor of the rear seat outer belt assembly LH with the bolt.

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:

Do not allow the anchor part of the rear seat outer belt assembly LH to overlap the protruding parts of the floor panel.

Protruding Part

CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL ROOF SIDE INNER GARNISH LH
Refer to PROCEDURE - Step 20
INSTALL ROOF SIDE INNER GARNISH RH
HINT:

Use the same procedure as for the LH side.
INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 21
INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 1
INSTALL REAR SIDE SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 1
INSTALL REAR SIDE SEATBACK ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 5
INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 6
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Refer to PROCEDURE - Step 7
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:

Refer to PROCEDURE - Step 2

for 2GR-FKS:

Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT INNER TRIM PAD (w/ Seat Heater System)
Refer to PROCEDURE - Step 7
INSTALL SPARE WHEEL COVER ASSEMBLY (w/ Seat Heater System)
Refer to PROCEDURE - Step 11
INSTALL LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3
PERFORM DIAGNOSTIC SYSTEM CHECK
for HV Model:

Refer to DTC CHECK / CLEAR [04/2018 - ]

for Gasoline Model:

Refer to DTC CHECK / CLEAR [04/2018 - ]
INSPECT SRS WARNING LIGHT
for HV Model:

Refer to OPERATION CHECK [04/2018 - ]

for Gasoline Model:

Refer to OPERATION CHECK [04/2018 - ]
