Components [04/2018 -]

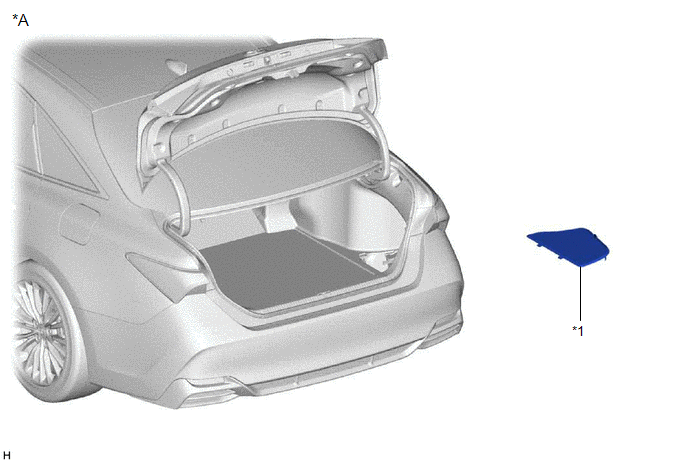

Fig 1: Spiral Cable Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	-	-
*1	LUGGAGE TRIM SERVICE HOLE COVER	-	-

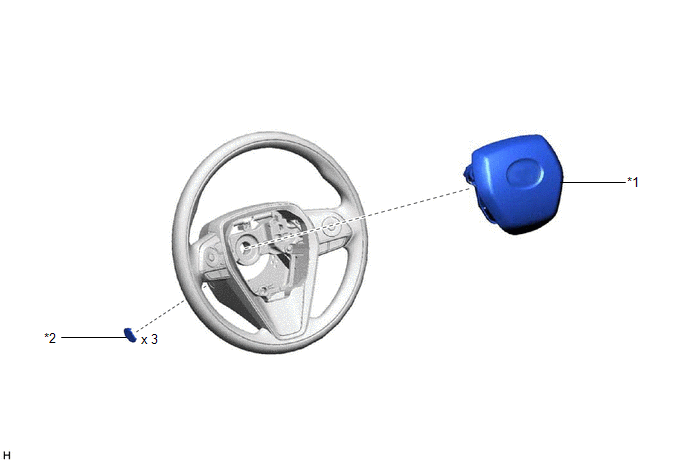

Fig 2: Spiral Cable Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HORN BUTTON ASSEMBLY

LOWER NO. 2 STEERING WHEEL COVER

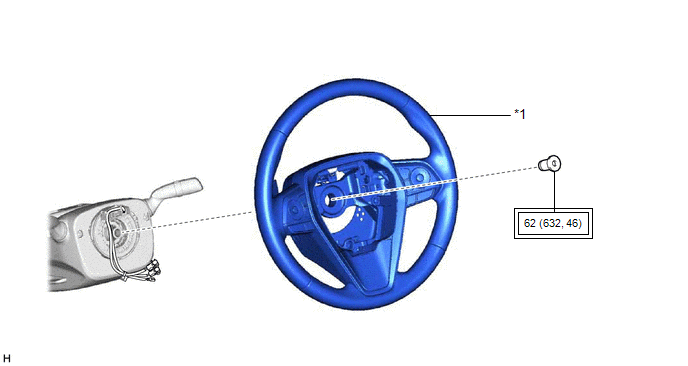

Fig 3: Spiral Cable Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

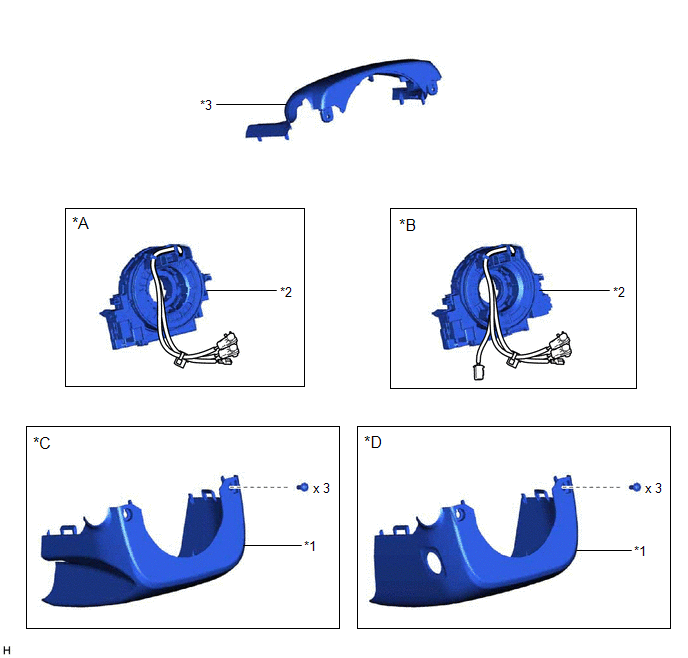

Fig 4: Spiral Cable Replacement Components (4 Of 5)

*A	w/o Heated Steering Wheel System	*B	w/ Heated Steering Wheel System
*C	for Manual Tilt and Manual Telescopic Steering Column	*D	for Power Tilt and Power Telescopic Steering Column
*1	LOWER STEERING COLUMN COVER	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

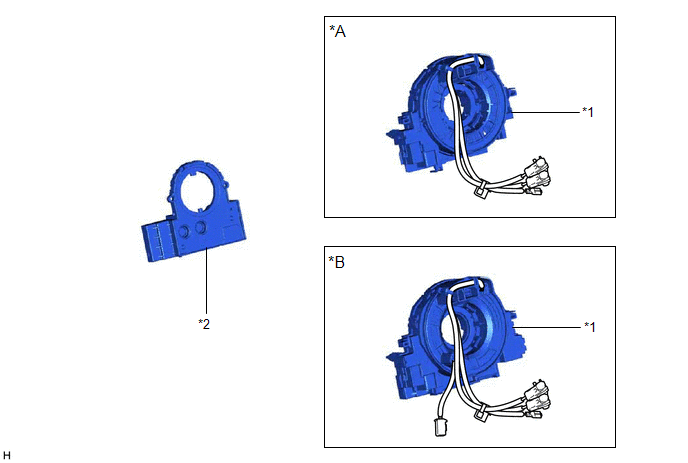

Fig 5: Spiral Cable Replacement Components (5 Of 5)

*A	w/o Heated Steering Wheel System	*B	w/ Heated Steering Wheel System
*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING SENSOR
