Removal [04/2018 -]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [04/2018 -]

Refer to REMOVAL [04/2018 -]

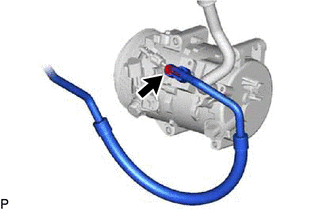

1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose sub-assembly from the compressor assembly with magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

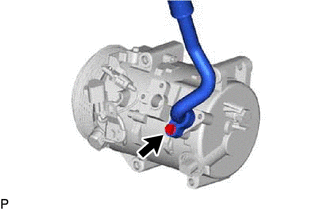

1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the suction hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

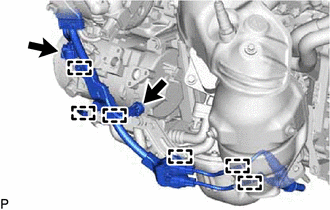

1. Disconnect each connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage each clamp.
3. for Type A:

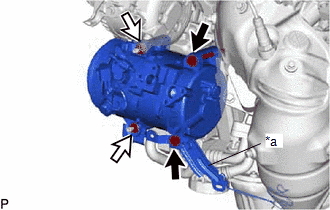

   1. Remove the 2 bolts and 2 nuts, and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Bracket
      	Bolt
      	Nut

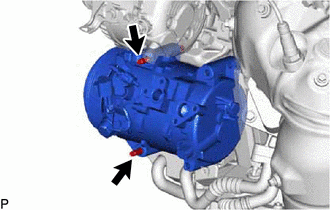

   2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. for Type B:

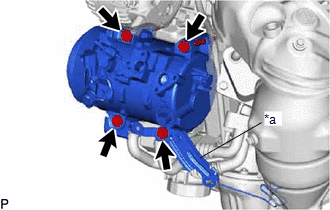

   1. Remove the 4 bolts and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Bracket

5. Remove the compressor assembly with magnetic clutch.
