Section 96 (Power Outlets (Interior) - Diagnostics & Circuit Tests (Hybrid))
>>
WIRELESS CHARGING SYSTEM (for HV Model)
>>

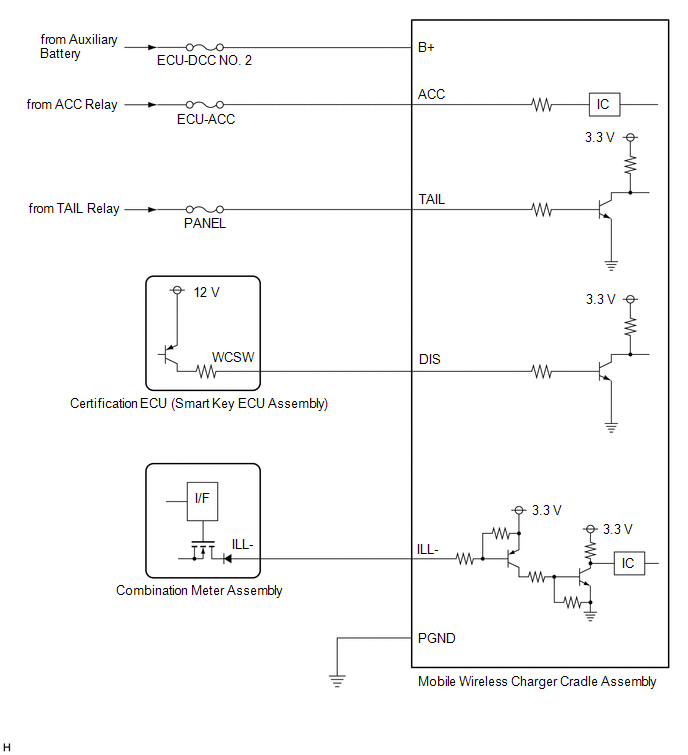

System Diagram [04/2018 - ]
>>
System Diagram [04/2018 - ]
System Diagram [04/2018 - ]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
