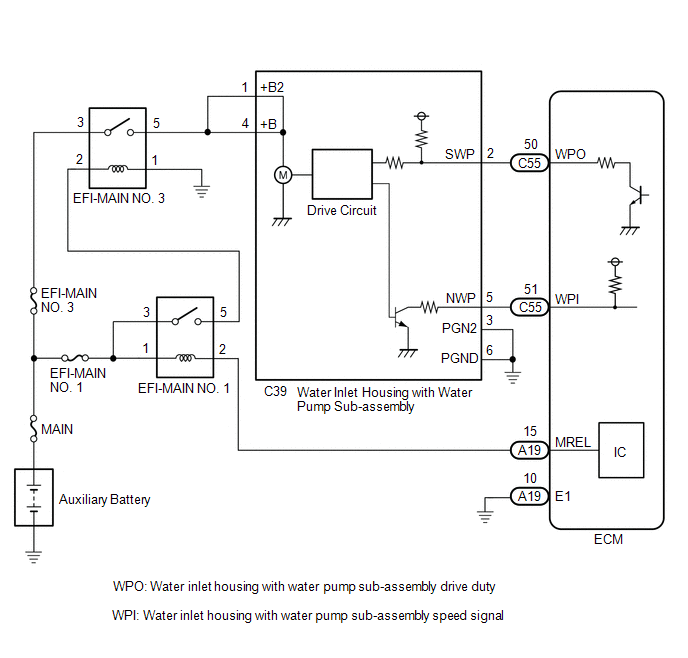

DTC P26CA-12: Engine Coolant Pump Circuit Short to Battery [04/2018 -]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY843938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
