Parts Location [04/2018 - 08/2021]: Illustration
WARNING: This page is about a different variant/trim than selected.

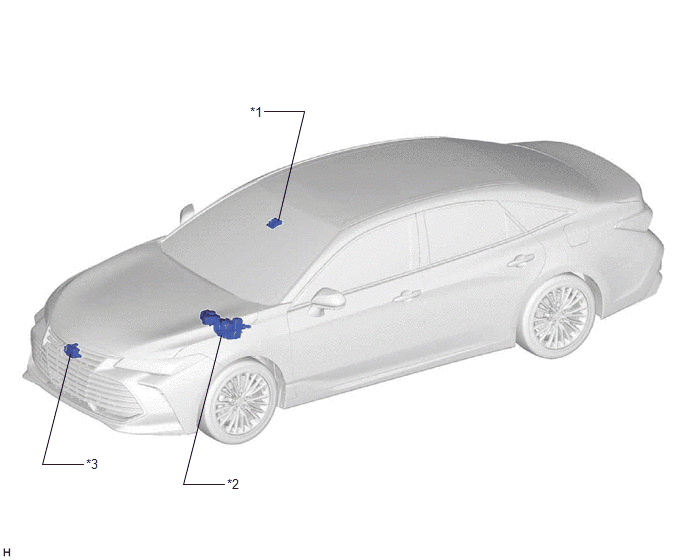

| *1 | FORWARD RECOGNITION CAMERA | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |

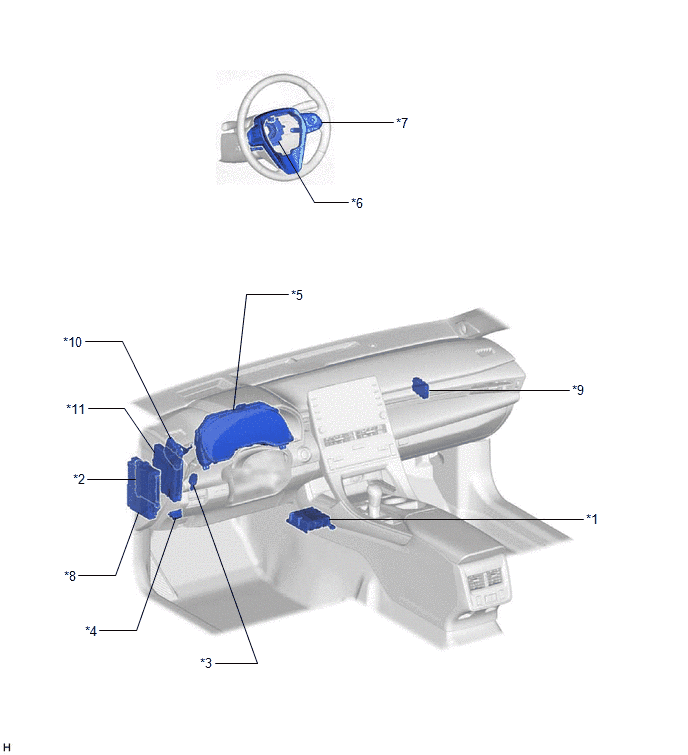

| *1 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | DLC3 |
| *5 | COMBINATION METER ASSEMBLY - Multi-information Display - Cruise Control Indicator - Cruise SET Indicator - Warning Buzzer - Master Warning Light |
*6 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
| *7 | STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH |
*8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE |
| *9 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *10 | DRIVING SUPPORT ECU ASSEMBLY |
| *11 | HYBRID VEHICLE CONTROL ECU | - | - |
