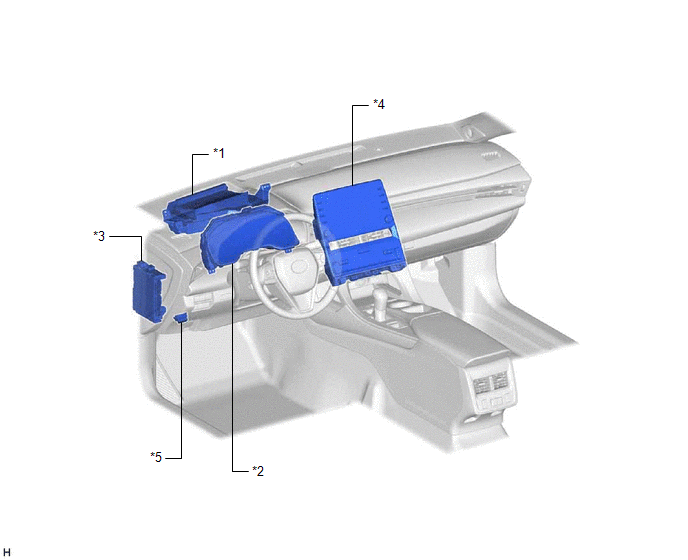

Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
METER MIRROR SUB-ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 FUSE
- ECU-IG1 NO. 4 FUSE |
*4 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 |
DLC3 |
- |
- |
