Parts Location [04/2018 -]: Illustration
WARNING: This page is about a different variant/trim than selected.

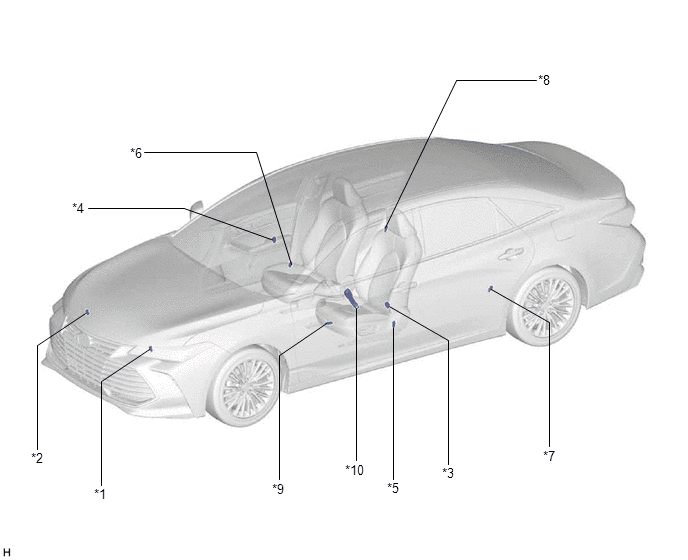

| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | SIDE AIRBAG PRESSURE SENSOR LH | *4 | SIDE AIRBAG PRESSURE SENSOR RH |
| *5 | SIDE NO. 1 AIRBAG SENSOR LH | *6 | SIDE NO. 1 AIRBAG SENSOR RH |
| *7 | SIDE NO. 2 AIRBAG SENSOR LH | *8 | SIDE NO. 2 AIRBAG SENSOR RH |
| *9 | SEAT POSITION AIRBAG SENSOR | *10 | FRONT SEAT INNER BELT ASSEMBLY LH - FRONT SEAT BELT BUCKLE SWITCH LH |

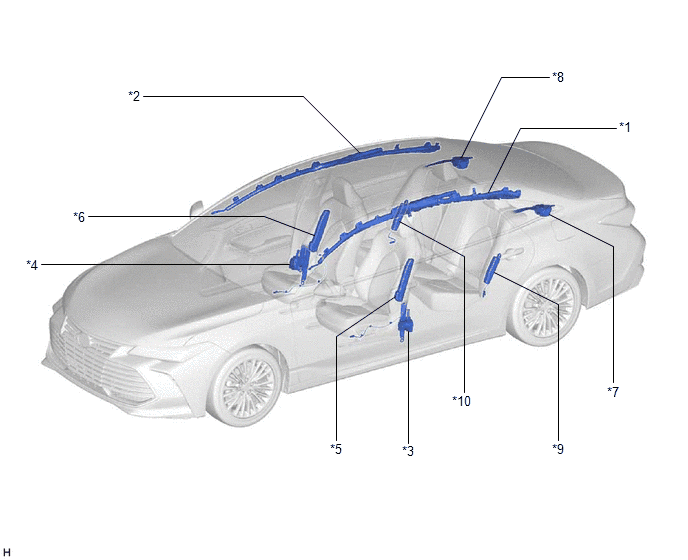

| *1 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *2 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *3 | FRONT SEAT OUTER BELT ASSEMBLY LH | *4 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *5 | FRONT SEAT AIRBAG ASSEMBLY LH | *6 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *7 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH | *8 | REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH |
| *9 | REAR SEAT AIRBAG ASSEMBLY LH | *10 | REAR SEAT AIRBAG ASSEMBLY RH |

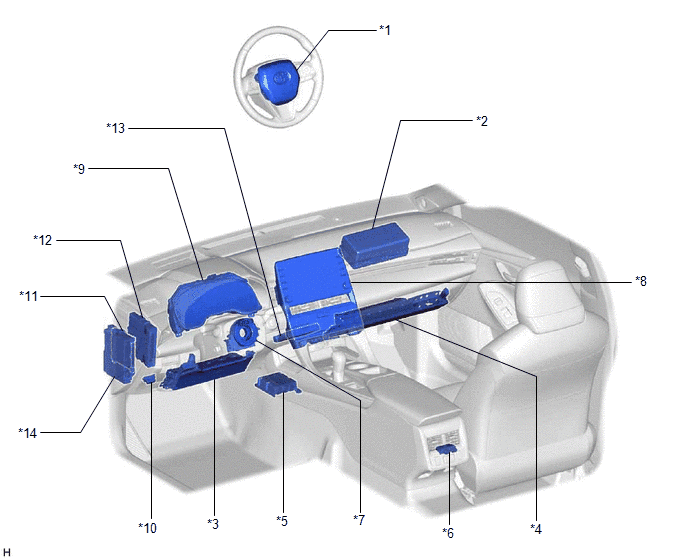

| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | AIRBAG ECU ASSEMBLY | *6 | OCCUPANT DETECTION ECU |
| *7 | SPIRAL CABLE SUB-ASSEMBLY | *8 | RADIO AND DISPLAY RECEIVER ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
| *9 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
*10 | DLC3 |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | HYBRID VEHICLE CONTROL ECU |
| *13 | DCM (TELEMATICS TRANSCEIVER) | *14 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - METER-IG2 FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
