DTC B14B2: Lost Communication with Front Panel LIN [04/2018 -]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVER ASSEMBLY) - POWER SOURCE AND BODY GROUND)
    1. Disconnect the G20 air conditioning control panel (radio and display receiver assembly) connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      G20-3 (+B) - Body ground Power switch off 11 to 14 V
      G20-2 (IG+) - Body ground Power switch on (IG) 11 to 14 V
      G20-10 (ACC) - Body ground Power switch on (ACC) 11 to 14 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      G20-6 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVER ASSEMBLY) - AIR CONDITIONING AMPLIFIER ASSEMBLY)
    1. Disconnect the G35 air conditioning amplifier assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G20-8 (LIN1) - G35-14 (LIN1) Always Below 1 Ω
      G20-8 (LIN1) or G35-14 (LIN1) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
    GTY550876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the G35 air conditioning amplifier assembly connector.
    2. Turn the power switch on (IG).
    3. Using an oscilloscope, check the waveform.
      Item Content
      Terminal No. G35-14 (LIN1) - Body ground
      Tool Setting 2 V/DIV., 20 ms./DIV.
      Condition Power switch on (IG)

      OK

      Waveform is similar to that shown in the illustration.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [04/2018 - 08/2020]  , or refer to  REMOVAL [08/2020 -]

    Result:

    OK

    See step  4

  4. INSPECT AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVER ASSEMBLY)

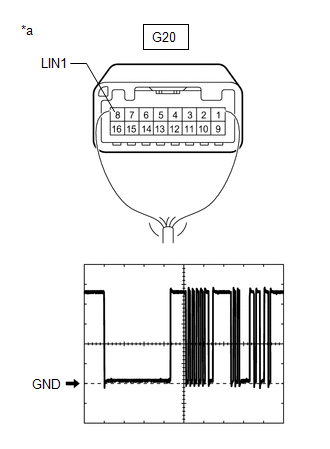

    GTY864179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component with harness connected
    (Air Conditioning Control Panel (Radio and Display Receiver Assembly))
    1. Connect the G20 air conditioning control panel (radio and display receiver assembly) connector.
    2. Turn the power switch on (IG).
    3. Using an oscilloscope, check the waveform.
      Item Content
      Terminal No. G20-8 (LIN1) - Body ground
      Tool Setting 2 V/DIV., 20 ms./DIV.
      Condition Power switch on (IG)

      OK

      Waveform is similar to that shown in the illustration.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [04/2018 - 08/2020]  , or refer to  REMOVAL [08/2020 -]

    Result:

    NG

    REPLACE AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVER ASSEMBLY). Refer to  REMOVAL [04/2018 -]
