Section 65 (Air Conditioning System - Diagnostic Codes & Symptom Tests (Hybrid))
>>
AIR CONDITIONING SYSTEM (for HV Model)
>>
DTC B1473: A/C Inverter Start-up Signal System [04/2018 -]
>>
Wiring Diagram
DTC B1473: A/C Inverter Start-up Signal System [04/2018 -]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

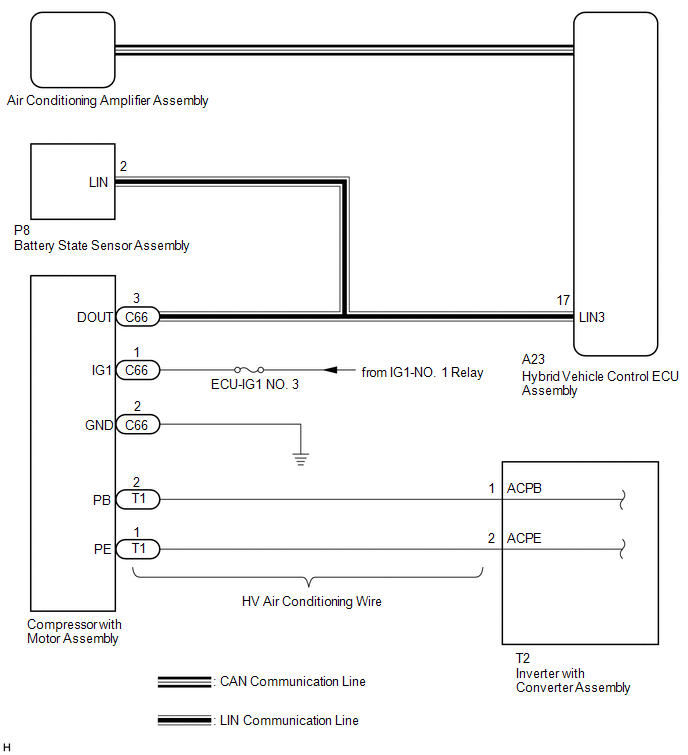

Fig 1: A/C Inverter Start-Up Signal System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
