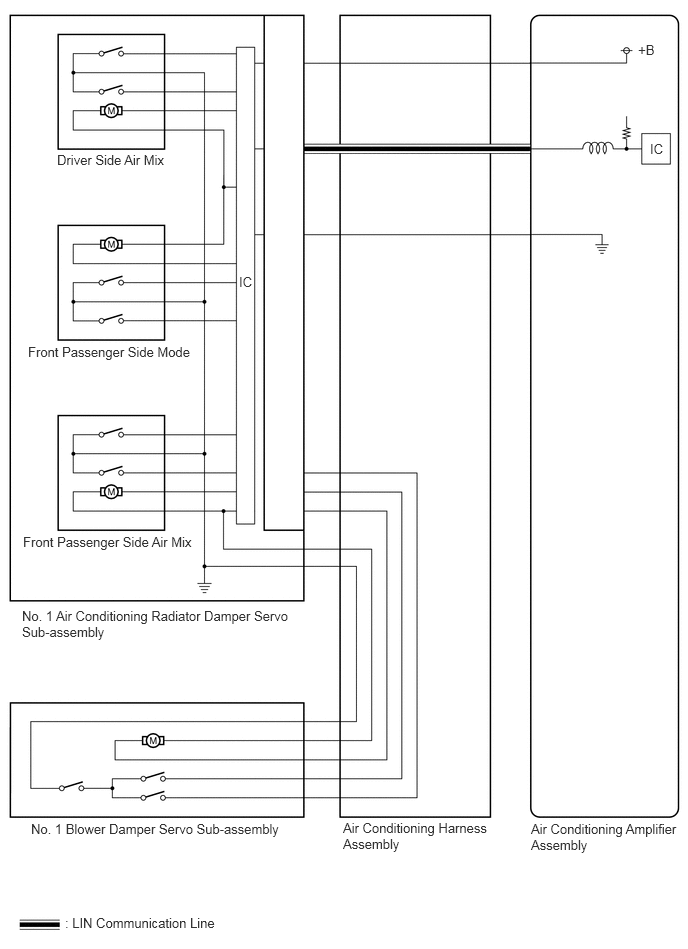

DTC B1441: Air Mix Damper Control Servo Motor Circuit (Passenger Side); DTC B1446: Air Mix Damper Control Servo Motor Circuit (Driver Side); DTC B1448: FACE Servo Motor Circuit(Passenger Side) [04/2018 -]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
