PTC Heater Circuit [04/2018 - 08/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

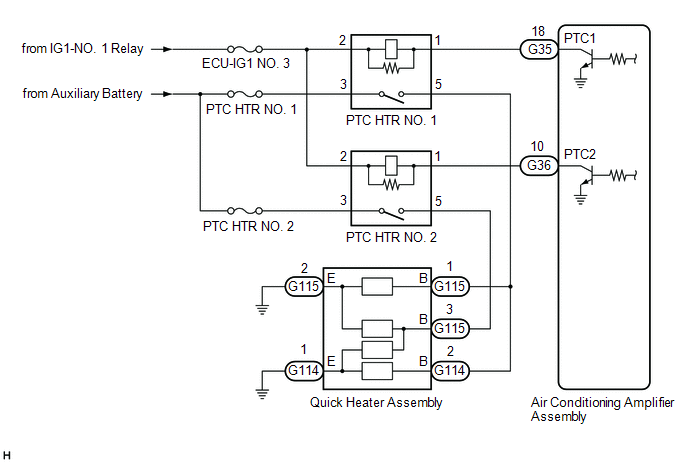

Fig 1: PTC Heater Circuit Diagram
GTY861560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
