Parts Location [04/2018 -]: Illustration
WARNING: This page is about a different variant/trim than selected.

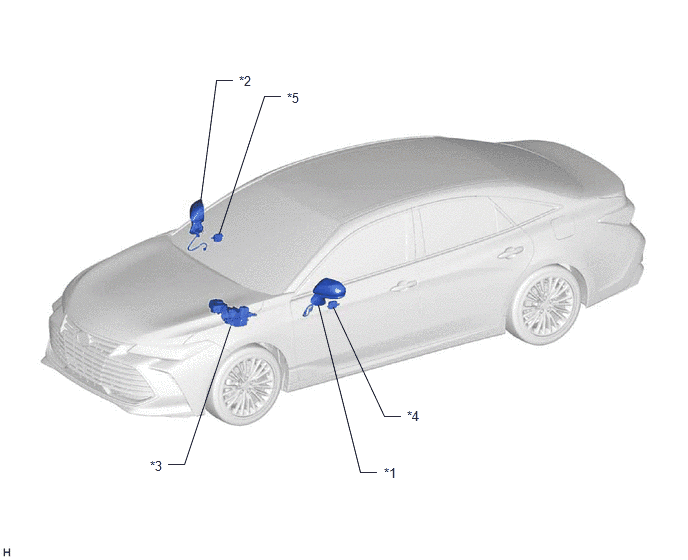

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*4 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Memory) |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Memory) | - | - |

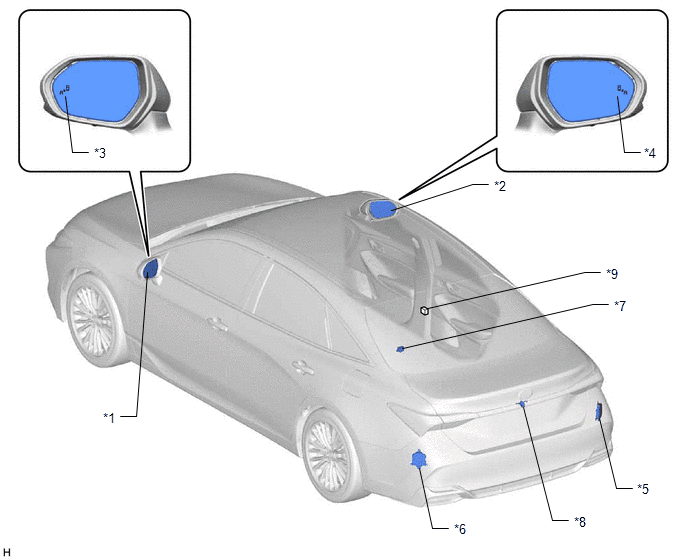

| *1 | OUTER MIRROR LH | *2 | OUTER MIRROR RH |
| *3 | OUTER REAR VIEW MIRROR INDICATOR LH | *4 | OUTER REAR VIEW MIRROR INDICATOR RH |
| *5 | BLIND SPOT MONITOR SENSOR RH (MASTER) | *6 | BLIND SPOT MONITOR SENSOR LH (SLAVE) |
| *7 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | *8 | TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *9 | NO. 26 JUNCTION CONNECTOR (w/ Intelligent Clearance Sonar System) | - | - |

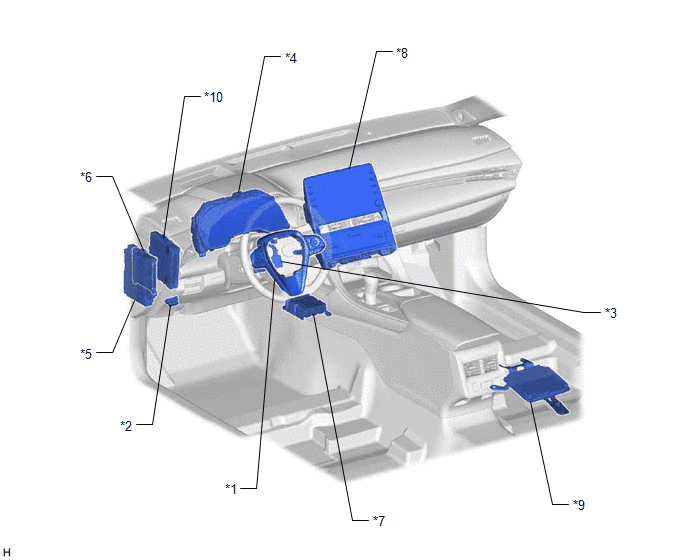

| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | STEERING SENSOR | *4 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - IG1-NO. 1 RELAY |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*8 | RADIO AND DISPLAY RECEIVER ASSEMBLY - MULTI-DISPLAY |
| *9 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) | *10 | HYBRID VEHICLE CONTROL ECU |
