Section 48 (Engine Cooling Fan System (Inspection) [A25A-FXS])
>>
Cooling Fan System
>>
Cooling Fan Circuit [04/2018 - ]
>>
Wiring Diagram

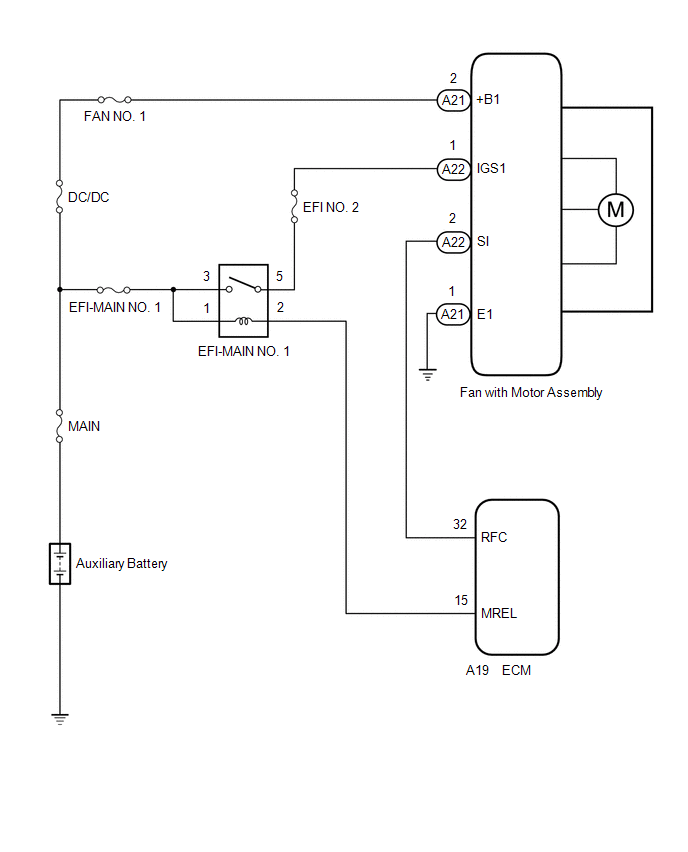

Cooling Fan Circuit [04/2018 - ]: Wiring Diagram
