DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [08/2019 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

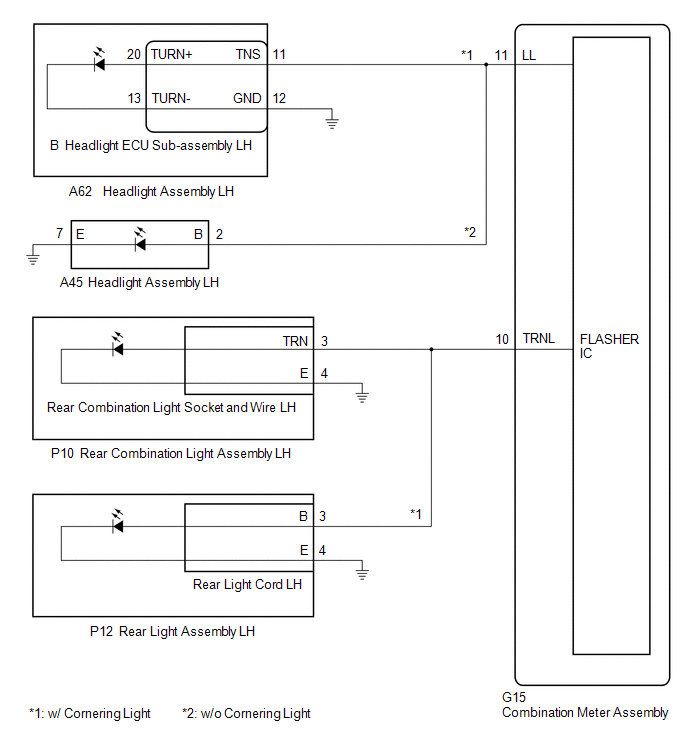

  1. LH SIDE
    GTY897517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

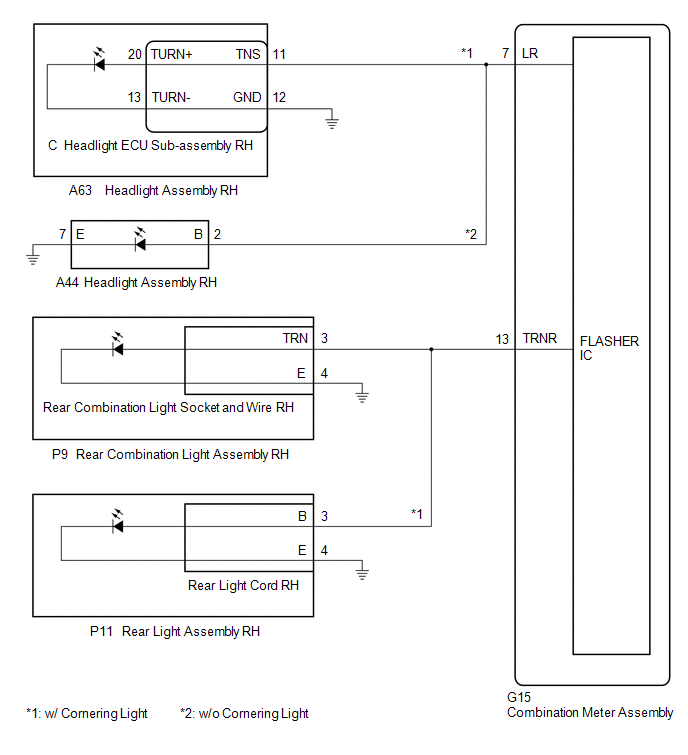

  2. RH SIDE
    GTY897516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
